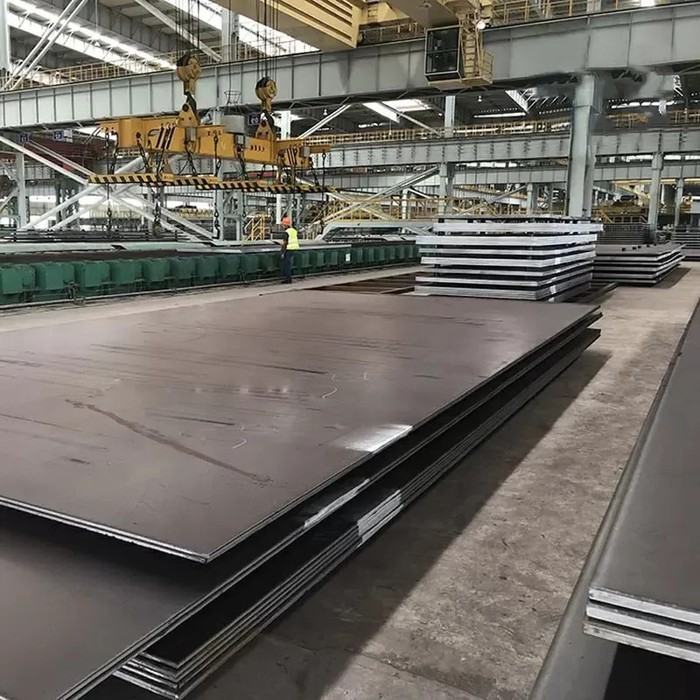

S690QL1 High Strength Steel Plate
S690QL1 high strength steel plate has several advantages that make it a preferred choice for various applications. These advantages include:
1. High Strength: As the name suggests, S690QL1 high strength steel plate has exceptional strength that makes it efficient for use in demanding applications. It has a minimum yield strength of 690 MPa, which is much higher compared to conventional structural steel.
2. Toughness: S690QL1 high strength steel plate is known for its toughness, which makes it resistant to cracks and fractures. It has the ability to withstand high impact loads without buckling or breaking, making it perfect for applications that require high strength and durability.
3. Good Weldability: S690QL1 high strength steel plate has excellent weldability, which means it can be easily welded without affecting its strength or properties. This makes it suitable for use in highly dynamic and challenging environments that require frequent welding.
4. Low Weight: Despite its high strength, S690QL1 steel has a relatively low weight, which makes it ideal for use in industries where weight reduction is critical, such as aerospace and transportation.
5. Aesthetic Appeal: S690QL1 high strength steel plate has a smooth surface finish and comes in a variety of colors and patterns, which makes it a preferred choice for applications that require aesthetic appeal, such as building façades and interior designs.
S690Q, S690QL, S690QL1 steel plate chemical composition (analysis of finished products):
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Nb | V | Ti | N | Zr | B |
| ≤0.2 | ≤0.8 | ≤1.7 | ≤0.025 | ≤0.015 | ≤2 | ≤1.5 | ≤0.7 | ≤0.5 | ≤0.06 | ≤0.12 | ≤0.05 | ≤0.015 | ≤0.15 | ≤0.005 |
Typical Mechanical Properties
| Plate Size mm |
Tensile N/mm² |
Yield N/mm² |
Elongation % |
|---|---|---|---|
| up to 50 | 770-940 | 690 | 14 |
| 50 to 100 | 760-930 | 650 | 14 |
| over 100 | 720-900 | 630 | 14 |
Typical Impact Properties
| Steel Name |
Sample Direction |
0°C | -20°C | -40°C | -60°C |
|---|---|---|---|---|---|
| S690QL | Longitudinal Transverse |
50J 35J |
40J 30J |
30J 27J |
|
| S690QL1 | Longitudinal Transverse |
60J 40J |
50J 35J |
40J 30J |
30J 27J |
S690QL1 high strength steel plate production process
1. Melting: The production process starts with the melting of the raw materials in a furnace. The raw materials typically consist of iron ore, coal, and limestone, which are heated to extremely high temperatures to form a molten metal.
2. Refining: Once the raw materials have been melted, the impurities are removed through a refining process. This involves the use of various chemical and physical methods to remove unwanted elements from the molten metal.
3. Continuous Casting: The molten metal is then poured into a continuous casting machine, where it is molded into the desired shape. The continuous casting process helps ensure that the steel plate has a uniform thickness and consistent mechanical properties.
4. Rolling: The steel plate is then rolled to the desired thickness and shape. This involves passing the steel through a series of rollers that apply pressure to shape and form the steel into the desired dimensions.
5. Heat Treatment: The final step in the production process is heat treatment. This involves subjecting the steel plate to high temperatures and cooling it rapidly to create a hardened surface that is resistant to wear and tear.
