1 2 316 SS tubing refers to a type of stainless steel tubing that has a diameter of 1/2 inch and is made from grade 316 stainless steel.

Send Inquiry

Product Introduction

Grade 316 stainless steel is a corrosion-resistant material that is commonly used in various industries, including chemical processing, oil and gas, food and beverage, and medical equipment. It contains higher levels of molybdenum and nickel compared to other stainless steel grades, which enhances its resistance to corrosion and pitting.

316 SS tubing is known for its excellent strength and durability, making it suitable for applications that require high-pressure and high-temperature resistance. It is commonly used in fluid handling systems, such as pipelines, heat exchangers, and instrumentation.

The tubing is available in various forms, including seamless and welded, and can be customized to specific lengths and dimensions. It can also be fabricated into different shapes, such as round, square, or rectangular, to meet specific application requirements.

Overall, 1 2 316 SS tubing is a versatile and reliable choice for applications that require corrosion resistance, strength, and durability in demanding environments.

sch 40 316 stainless steel pipe

Specification

Product Name	Executive Standard	Dimension	Steel Code / Steel Grade
Seamless Austenitic Stainless Steel Pipes	ASTM A312/A312M, ASME SA312/SA312M	OD: 1/4"~20" WT: SCH5S~SCH80S	TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H
Seamless Austenitic Stainless Steel Tubing for General Service	ASTM A269, ASME SA269	OD: 6.0~50.8mm WT: 0.8~10.0mm	TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H
Seamless Austenitic Alloy-Steel Boiler, Super Heater and Heat-Exchanger Tubes	ASTM A213/A213M, ASME SA213/SA213M	OD: 6.0~50.8mm WT: 0.8~10.0mm	TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H
Seamless Duplex Stainless Steel Tubing for General Service	ASTM A789 / A789M	OD: 19.0~60.5mm WT: 1.2~5.0mm	S31803, S32205, S32750
Seamless Duplex Stainless Steel Pipes	ASTM A790 / A790M	OD: 3/4"~10" WT: SCH5S~SCH80S	S31803, S32205, S32750
Seamless Stainless Steel Mechanical Tubing	ASTM A511	OD: 6.0~50.8mm WT: 1.8~10.0mm	MT304, MT304L, MT304H, MT310, MT310S, MT316, MT316L, MT317, MT317L, MT321, MT321H, MT347
Seamless Stainless Steel Tubes for Pressure Purposes	EN 10216, DIN 17456, 17458	OD: 6.0~530.0mm WT: 0.8~34.0mm	1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4878, 1.4432, 1.4462

Application

ss 316 elbow

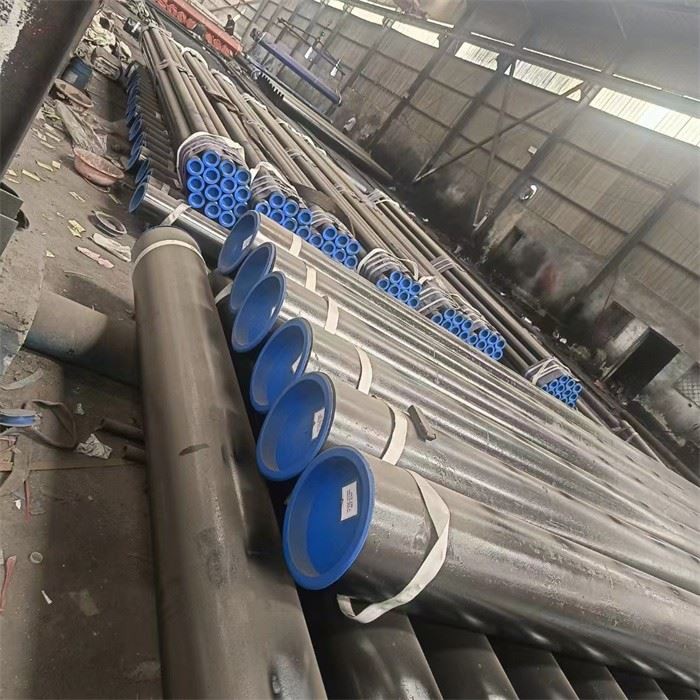

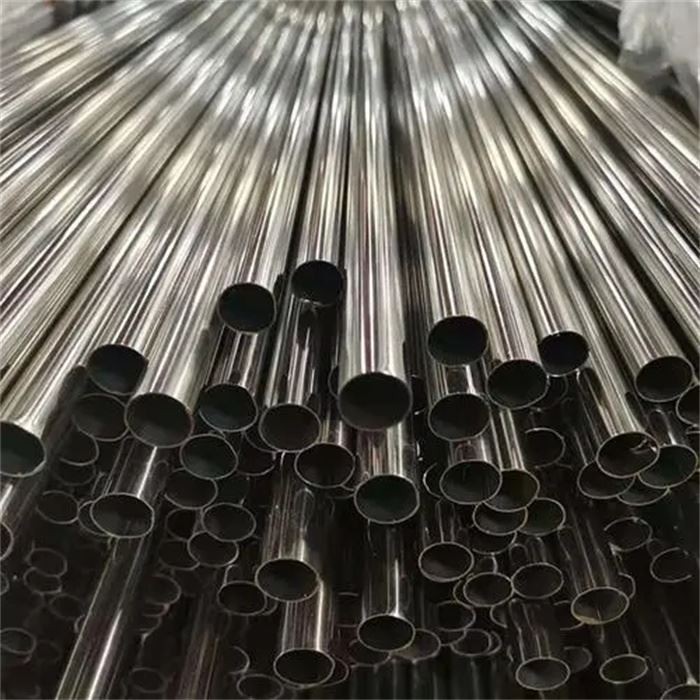

Details Images

【Professional manufacturer】15 years in stainless steel industry and 10 years of experience in foreign trade with qualification
standards of various countries, cooperation with more than 1000 foreign companies.
【Competitive price】Source factory, provides you with the factory price,no dealer earns the price difference.
【High quality raw materials】Strictly control the proportion of various metal components, oil content and shape of incoming
materials to ensure product quality.
【Imported equipment】the equipment is imported from the United States and Germany, the technology is more mature, the operation is
more precise, and the processing is more assured.
【Complete types and models】produce any grades of stainless steel coils/plates/strips, applicable to various industries.
【Available sizes】regular sizes are available from stock, also can be customized. It's up to you!

large diameter 316 stainless steel tube
