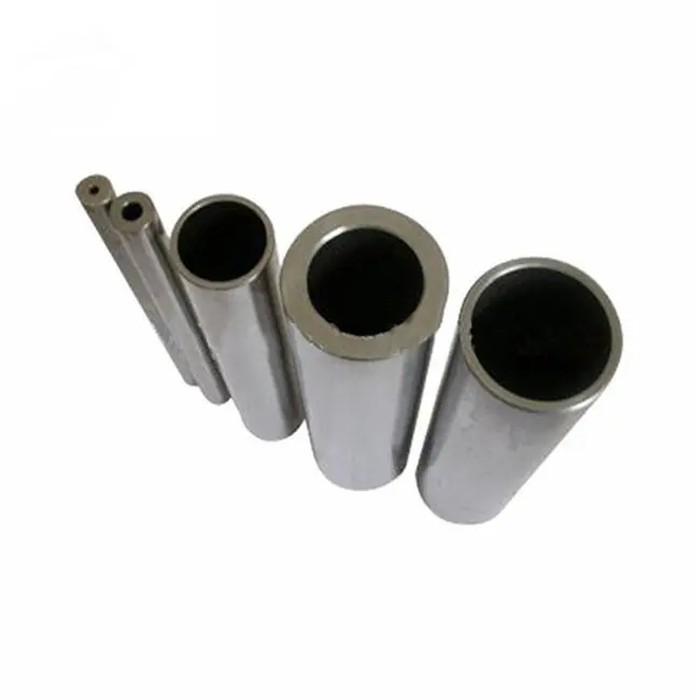

304 Stainless Steel Pipe, A213 Gr Tp304 Seamless
304 Stainless Steel Pipe is a widely used product in different industrial applications. It is made from high-quality stainless steel that is resistant to corrosion, rust, and other forms of degradation. This material is also non-magnetic and a good conductor of heat and electricity.
Send Inquiry
Product Introduction
304 Stainless Steel Pipe is a widely used product in different industrial applications. It is made from high-quality stainless steel that is resistant to corrosion, rust, and other forms of degradation. This material is also non-magnetic and a good conductor of heat and electricity.
One of the key benefits of 304 stainless steel pipe is its strength. It can withstand high pressure and temperatures, making it ideal for use in piping systems that need to transport fluids and gases at elevated pressures and temperatures. This material can also be fabricated into different shapes and sizes to meet the unique requirements of different applications.
Another advantage of 304 stainless steel pipe is its durability. This material is known to last long and perform well even in harsh environments. It is resistant to chemicals, acids, and other types of corrosive substances, which means that it can be used in a wide range of industries, including chemical processing, medical, and food processing.
Overall, 304 Stainless Steel Pipe is a versatile, reliable, and high-quality product that is used in a wide range of industries around the world. Its exceptional resistance to corrosion, strength, and durability make it a popular choice for plumbing, piping, and other applications where failure is not an option. If you are looking for a seamless, strong, and reliable piping solution, 304 stainless steel pipe is definitely worth considering.
| Specification | ASTM A213 TP304 / ASME SA213 TP304 Tube |
| Shapes | Hydraulic, Round, Rectangular, Honed Tubes, Square, Straight, U Shape, Coiled, Pan Cake Coils |
| Thickness Range | SCH XXS, SCH 5, SCH 40, SCH XS, SCH 10, SCH 160, SCH XXH, SCH 80S, SCH 80 |
| Surface Finish | 400G, 500G, BA, 2B, No.1, Mirror Polished, No.8, No.4, No.3, 8K, 2D, 1D, 600G or 800G Mirror finish Tubing, 180G, 320G, HL, 400G Satin/ Hairline or Custom Finish as per customer's specification |
| Manufacturing Type | CDS / CDW / DOM / abricated / Seamless / Welded / ERW / CEW / 100% X Ray Welded |
| Standard | GB, JIS, DIN, ASTM, AISI, EN, SUS |
| Technique | Cold rolled, Extrusion, Cold drawn, Hot rolled Tube |
| Delivery Condition | Polished, Annealed and Pickled (AP), MF, Cold Drawn, Bright Annealed (BA) |
| Processing Service | Bending, Cutting, Decoiling, Punching, Welding, Moulding |
| End | Plain End, Treaded, Beveled End |
ASTM A213 304 ERW Tubing Chemical composition
| Grade | Carbon | Manganese | Sulfur | Phosphorus | Silicon | Chromium | Nickel |
| TP304 | 0.08 | 2 | 0.03 | 0.045 | 1 | 18.0-20.0 | 8.0-11.0 |
Mechanical Properties of SA213 Grade 304 SS Welded Tube
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation |
| Treatment | Minimum º F(º C) | Ksi (MPa), Minimum | Ksi (MPa), Minimum | ||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
SA 213 TP 304 Tubing Equivalent
| Grade | Old British | Unified Numbering System | Swedish SS | Euronorm | Japanese Industrial Standards | ||
| British Standards | European Standards | No | Name | ||||
| ASTM A213 TP304 | 304S31 | 58E | S30400 | 2332 | 1.4301 | X5CrNi18-10 | SUS 304 |
ASTM A213 TP304 SS Seamless Tubing Pressure Rating
| Outer Diameter in inches | Wall Thcickness in inches | Theoretical Yield Point ** (PSI) | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Tensile Strength (PSI) | Yield Strength (PSI) |
|---|---|---|---|---|---|---|
| 0.250 | 0.020 | 5,714 | 14,286 | 3,571 | 75,000 | 30,000 |
| 0.250 | 0.028 | 8,660 | 21,649 | 5,412 | 75,000 | 30,000 |
| 0.250 | 0.035 | 11,667 | 29,167 | 7,292 | 75,000 | 30,000 |
| 0.250 | 0.049 | 19,342 | 48,355 | 12,089 | 75,000 | 30,000 |
| 0.250 | 0.065 | 32,500 | 81,250 | 20,313 | 75,000 | 30,000 |
| 0.375 | 0.020 | 3,582 | 8,955 | 2,239 | 75,000 | 30,000 |
| 0.375 | 0.028 | 5,266 | 13,166 | 3,292 | 75,000 | 30,000 |
| 0.375 | 0.035 | 6,885 | 17,213 | 4,303 | 75,000 | 30,000 |
| 0.375 | 0.049 | 10,614 | 26,534 | 6,634 | 75,000 | 30,000 |
| 0.375 | 0.065 | 15,918 | 39,796 | 9,949 | 75,000 | 30,000 |
| 0.500 | 0.020 | 2,609 | 6,522 | 1,630 | 75,000 | 30,000 |
| 0.500 | 0.028 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.500 | 0.035 | 4,884 | 12,209 | 3,052 | 75,000 | 30,000 |
| 0.500 | 0.049 | 7,313 | 18,284 | 4,571 | 75,000 | 30,000 |
| 0.500 | 0.065 | 10,541 | 26,351 | 6,588 | 75,000 | 30,000 |
| 0.500 | 0.083 | 14,910 | 37,275 | 9,319 | 75,000 | 30,000 |
| 0.625 | 0.020 | 2,051 | 5,128 | 1,282 | 75,000 | 30,000 |
| 0.625 | 0.028 | 2,953 | 7,381 | 1,845 | 75,000 | 30,000 |
| 0.625 | 0.035 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.625 | 0.049 | 5,579 | 13,947 | 3,487 | 75,000 | 30,000 |
| 0.625 | 0.065 | 7,879 | 19,697 | 4,924 | 75,000 | 30,000 |
| 0.625 | 0.083 | 10,850 | 27,124 | 6,781 | 75,000 | 30,000 |
| 0.625 | 0.095 | 13,103 | 32,759 | 8,190 | 75,000 | 30,000 |
| 0.625 | 0.109 | 16,069 | 40,172 | 10,043 | 75,000 | 30,000 |
| 0.750 | 0.028 | 2,421 | 6,052 | 1,513 | 75,000 | 30,000 |
| 0.750 | 0.035 | 3,088 | 7,721 | 1,930 | 75,000 | 30,000 |
| 0.750 | 0.049 | 4,509 | 11,273 | 2,818 | 75,000 | 30,000 |
| 0.750 | 0.065 | 6,290 | 15,726 | 3,931 | 75,000 | 30,000 |
| 0.750 | 0.083 | 8,527 | 21,318 | 5,330 | 75,000 | 30,000 |
| 0.750 | 0.095 | 10,179 | 25,446 | 6,362 | 75,000 | 30,000 |
| 0.750 | 0.109 | 12,293 | 30,733 | 7,683 | 75,000 | 30,000 |
| 0.750 | 0.120 | 14,118 | 35,294 | 8,824 | 75,000 | 30,000 |
| 0.875 | 0.020 | 1,437 | 3,593 | 898 | 75,000 | 30,000 |
| 0.875 | 0.028 | 2,051 | 5,128 | 1,282 | 75,000 | 30,000 |
| 0.875 | 0.035 | 2,609 | 6,522 | 1,630 | 75,000 | 30,000 |
| 0.875 | 0.049 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.875 | 0.065 | 5,235 | 13,087 | 3,272 | 75,000 | 30,000 |
| 0.875 | 0.083 | 7,024 | 17,560 | 4,390 | 75,000 | 30,000 |
| 0.875 | 0.095 | 8,321 | 20,803 | 5,201 | 75,000 | 30,000 |
| 0.875 | 0.109 | 9,954 | 24,886 | 6,221 | 75,000 | 30,000 |
| 0.875 | 0.120 | 11,339 | 28,346 | 7,087 | 75,000 | 30,000 |
| 1.000 | 0.028 | 1,780 | 4,449 | 1,112 | 75,000 | 30,000 |
| 1.000 | 0.035 | 2,258 | 5,645 | 1,411 | 75,000 | 30,000 |
| 1.000 | 0.049 | 3,259 | 8,149 | 2,037 | 75,000 | 30,000 |
| 1.000 | 0.065 | 4,483 | 11,207 | 2,802 | 75,000 | 30,000 |
| 1.000 | 0.083 | 5,971 | 14,928 | 3,732 | 75,000 | 30,000 |
| 1.000 | 0.095 | 7,037 | 17,593 | 4,398 | 75,000 | 30,000 |
| 1.000 | 0.109 | 8,363 | 20,908 | 5,227 | 75,000 | 30,000 |
| 1.000 | 0.120 | 9,474 | 23,684 | 5,921 | 75,000 | 30,000 |
| 1.000 | 0.134 | 10,984 | 27,459 | 6,865 | 75,000 | 30,000 |
| 1.250 | 0.035 | 1,780 | 4,449 | 1,112 | 75,000 | 30,000 |
| 1.250 | 0.049 | 2,552 | 6,380 | 1,595 | 75,000 | 30,000 |
| 1.250 | 0.065 | 3,482 | 8,705 | 2,176 | 75,000 | 30,000 |
| 1.250 | 0.083 | 4,594 | 11,485 | 2,871 | 75,000 | 30,000 |
| 1.250 | 0.095 | 5,377 | 13,443 | 3,361 | 75,000 | 30,000 |
| 1.250 | 0.109 | 6,337 | 15,843 | 3,961 | 75,000 | 30,000 |
| 1.250 | 0.120 | 7,129 | 17,822 | 4,455 | 75,000 | 30,000 |
| 1.250 | 0.134 | 8,187 | 20,468 | 5,117 | 75,000 | 30,000 |
| 1.500 | 0.035 | 1,469 | 3,671 | 918 | 75,000 | 30,000 |
| 1.500 | 0.049 | 2,097 | 5,243 | 1,311 | 75,000 | 30,000 |
| 1.500 | 0.065 | 2,847 | 7,117 | 1,779 | 75,000 | 30,000 |
| 1.500 | 0.083 | 3,733 | 9,333 | 2,333 | 75,000 | 30,000 |
| 1.500 | 0.095 | 4,351 | 10,878 | 2,719 | 75,000 | 30,000 |
| 1.500 | 0.109 | 5,101 | 12,754 | 3,188 | 75,000 | 30,000 |
| 1.500 | 0.120 | 5,714 | 14,286 | 3,571 | 75,000 | 30,000 |
| 1.500 | 0.134 | 6,526 | 16,315 | 4,079 | 75,000 | 30,000 |
| 1.500 | 0.148 | 7,375 | 18,439 | 4,610 | 75,000 | 30,000 |
| 1.750 | 0.035 | 1,250 | 3,125 | 781 | 75,000 | 30,000 |
| 1.750 | 0.049 | 1,546 | 3,864 | 966 | 75,000 | 30,000 |
| 1.750 | 0.065 | 2,407 | 6,019 | 1,505 | 75,000 | 30,000 |
| 1.750 | 0.083 | 3,144 | 7,860 | 1,965 | 75,000 | 30,000 |
| 1.750 | 0.095 | 3,654 | 9,135 | 2,284 | 75,000 | 30,000 |
| 1.750 | 0.109 | 4,269 | 10,672 | 2,668 | 75,000 | 30,000 |
| 1.750 | 0.120 | 4,768 | 11,921 | 2,980 | 75,000 | 30,000 |
| 1.750 | 0.134 | 5,425 | 13,563 | 3,391 | 75,000 | 30,000 |
| 1.750 | 0.148 | 6,107 | 15,268 | 3,817 | 75,000 | 30,000 |
| 1.750 | 0.165 | 6,972 | 17,430 | 4,357 | 75,000 | 30,000 |
| 2.000 | 0.035 | 1,088 | 2,720 | 680 | 75,000 | 30,000 |
| 2.000 | 0.049 | 1,546 | 3,864 | 966 | 75,000 | 30,000 |
| 2.000 | 0.065 | 2,086 | 5,214 | 1,303 | 75,000 | 30,000 |
| 2.000 | 0.083 | 2,715 | 6,788 | 1,697 | 75,000 | 30,000 |
| 2.000 | 0.095 | 3,149 | 7,873 | 1,968 | 75,000 | 30,000 |
| 2.000 | 0.109 | 3,670 | 9,175 | 2,294 | 75,000 | 30,000 |
| 2.000 | 0.120 | 4,091 | 10,227 | 2,557 | 75,000 | 30,000 |
| 2.000 | 0.134 | 4,642 | 11,605 | 2,901 | 75,000 | 30,000 |
| 2.000 | 0.148 | 5,211 | 13,028 | 3,257 | 75,000 | 30,000 |
| 2.000 | 0.165 | 5,928 | 14,820 | 3,705 | 75,000 | 30,000 |
ASTM A213 TP304 SS Seamless Tubing Pressure Rating
| Outer Diameter in inches | Wall Thcickness in inches | Theoretical Yield Point ** (PSI) | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Tensile Strength (PSI) | Yield Strength (PSI) |
|---|---|---|---|---|---|---|
| 0.250 | 0.020 | 5,714 | 14,286 | 3,571 | 75,000 | 30,000 |
| 0.250 | 0.028 | 8,660 | 21,649 | 5,412 | 75,000 | 30,000 |
| 0.250 | 0.035 | 11,667 | 29,167 | 7,292 | 75,000 | 30,000 |
| 0.250 | 0.049 | 19,342 | 48,355 | 12,089 | 75,000 | 30,000 |
| 0.250 | 0.065 | 32,500 | 81,250 | 20,313 | 75,000 | 30,000 |
| 0.375 | 0.020 | 3,582 | 8,955 | 2,239 | 75,000 | 30,000 |
| 0.375 | 0.028 | 5,266 | 13,166 | 3,292 | 75,000 | 30,000 |
| 0.375 | 0.035 | 6,885 | 17,213 | 4,303 | 75,000 | 30,000 |
| 0.375 | 0.049 | 10,614 | 26,534 | 6,634 | 75,000 | 30,000 |
| 0.375 | 0.065 | 15,918 | 39,796 | 9,949 | 75,000 | 30,000 |
| 0.500 | 0.020 | 2,609 | 6,522 | 1,630 | 75,000 | 30,000 |
| 0.500 | 0.028 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.500 | 0.035 | 4,884 | 12,209 | 3,052 | 75,000 | 30,000 |
| 0.500 | 0.049 | 7,313 | 18,284 | 4,571 | 75,000 | 30,000 |
| 0.500 | 0.065 | 10,541 | 26,351 | 6,588 | 75,000 | 30,000 |
| 0.500 | 0.083 | 14,910 | 37,275 | 9,319 | 75,000 | 30,000 |
| 0.625 | 0.020 | 2,051 | 5,128 | 1,282 | 75,000 | 30,000 |
| 0.625 | 0.028 | 2,953 | 7,381 | 1,845 | 75,000 | 30,000 |
| 0.625 | 0.035 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.625 | 0.049 | 5,579 | 13,947 | 3,487 | 75,000 | 30,000 |
| 0.625 | 0.065 | 7,879 | 19,697 | 4,924 | 75,000 | 30,000 |
| 0.625 | 0.083 | 10,850 | 27,124 | 6,781 | 75,000 | 30,000 |
| 0.625 | 0.095 | 13,103 | 32,759 | 8,190 | 75,000 | 30,000 |
| 0.625 | 0.109 | 16,069 | 40,172 | 10,043 | 75,000 | 30,000 |
| 0.750 | 0.028 | 2,421 | 6,052 | 1,513 | 75,000 | 30,000 |
| 0.750 | 0.035 | 3,088 | 7,721 | 1,930 | 75,000 | 30,000 |
| 0.750 | 0.049 | 4,509 | 11,273 | 2,818 | 75,000 | 30,000 |
| 0.750 | 0.065 | 6,290 | 15,726 | 3,931 | 75,000 | 30,000 |
| 0.750 | 0.083 | 8,527 | 21,318 | 5,330 | 75,000 | 30,000 |
| 0.750 | 0.095 | 10,179 | 25,446 | 6,362 | 75,000 | 30,000 |
| 0.750 | 0.109 | 12,293 | 30,733 | 7,683 | 75,000 | 30,000 |
| 0.750 | 0.120 | 14,118 | 35,294 | 8,824 | 75,000 | 30,000 |
| 0.875 | 0.020 | 1,437 | 3,593 | 898 | 75,000 | 30,000 |
| 0.875 | 0.028 | 2,051 | 5,128 | 1,282 | 75,000 | 30,000 |
| 0.875 | 0.035 | 2,609 | 6,522 | 1,630 | 75,000 | 30,000 |
| 0.875 | 0.049 | 3,784 | 9,459 | 2,365 | 75,000 | 30,000 |
| 0.875 | 0.065 | 5,235 | 13,087 | 3,272 | 75,000 | 30,000 |
| 0.875 | 0.083 | 7,024 | 17,560 | 4,390 | 75,000 | 30,000 |
| 0.875 | 0.095 | 8,321 | 20,803 | 5,201 | 75,000 | 30,000 |
| 0.875 | 0.109 | 9,954 | 24,886 | 6,221 | 75,000 | 30,000 |
| 0.875 | 0.120 | 11,339 | 28,346 | 7,087 | 75,000 | 30,000 |
| 1.000 | 0.028 | 1,780 | 4,449 | 1,112 | 75,000 | 30,000 |
| 1.000 | 0.035 | 2,258 | 5,645 | 1,411 | 75,000 | 30,000 |
| 1.000 | 0.049 | 3,259 | 8,149 | 2,037 | 75,000 | 30,000 |
| 1.000 | 0.065 | 4,483 | 11,207 | 2,802 | 75,000 | 30,000 |
| 1.000 | 0.083 | 5,971 | 14,928 | 3,732 | 75,000 | 30,000 |
| 1.000 | 0.095 | 7,037 | 17,593 | 4,398 | 75,000 | 30,000 |
| 1.000 | 0.109 | 8,363 | 20,908 | 5,227 | 75,000 | 30,000 |
| 1.000 | 0.120 | 9,474 | 23,684 | 5,921 | 75,000 | 30,000 |
| 1.000 | 0.134 | 10,984 | 27,459 | 6,865 | 75,000 | 30,000 |
| 1.250 | 0.035 | 1,780 | 4,449 | 1,112 | 75,000 | 30,000 |
| 1.250 | 0.049 | 2,552 | 6,380 | 1,595 | 75,000 | 30,000 |
| 1.250 | 0.065 | 3,482 | 8,705 | 2,176 | 75,000 | 30,000 |
| 1.250 | 0.083 | 4,594 | 11,485 | 2,871 | 75,000 | 30,000 |
| 1.250 | 0.095 | 5,377 | 13,443 | 3,361 | 75,000 | 30,000 |
| 1.250 | 0.109 | 6,337 | 15,843 | 3,961 | 75,000 | 30,000 |
| 1.250 | 0.120 | 7,129 | 17,822 | 4,455 | 75,000 | 30,000 |
| 1.250 | 0.134 | 8,187 | 20,468 | 5,117 | 75,000 | 30,000 |
| 1.500 | 0.035 | 1,469 | 3,671 | 918 | 75,000 | 30,000 |
| 1.500 | 0.049 | 2,097 | 5,243 | 1,311 | 75,000 | 30,000 |
| 1.500 | 0.065 | 2,847 | 7,117 | 1,779 | 75,000 | 30,000 |
| 1.500 | 0.083 | 3,733 | 9,333 | 2,333 | 75,000 | 30,000 |
| 1.500 | 0.095 | 4,351 | 10,878 | 2,719 | 75,000 | 30,000 |
| 1.500 | 0.109 | 5,101 | 12,754 | 3,188 | 75,000 | 30,000 |
| 1.500 | 0.120 | 5,714 | 14,286 | 3,571 | 75,000 | 30,000 |
| 1.500 | 0.134 | 6,526 | 16,315 | 4,079 | 75,000 | 30,000 |
| 1.500 | 0.148 | 7,375 | 18,439 | 4,610 | 75,000 | 30,000 |
| 1.750 | 0.035 | 1,250 | 3,125 | 781 | 75,000 | 30,000 |
| 1.750 | 0.049 | 1,546 | 3,864 | 966 | 75,000 | 30,000 |
| 1.750 | 0.065 | 2,407 | 6,019 | 1,505 | 75,000 | 30,000 |
| 1.750 | 0.083 | 3,144 | 7,860 | 1,965 | 75,000 | 30,000 |
| 1.750 | 0.095 | 3,654 | 9,135 | 2,284 | 75,000 | 30,000 |
| 1.750 | 0.109 | 4,269 | 10,672 | 2,668 | 75,000 | 30,000 |
| 1.750 | 0.120 | 4,768 | 11,921 | 2,980 | 75,000 | 30,000 |
| 1.750 | 0.134 | 5,425 | 13,563 | 3,391 | 75,000 | 30,000 |
| 1.750 | 0.148 | 6,107 | 15,268 | 3,817 | 75,000 | 30,000 |
| 1.750 | 0.165 | 6,972 | 17,430 | 4,357 | 75,000 | 30,000 |
| 2.000 | 0.035 | 1,088 | 2,720 | 680 | 75,000 | 30,000 |
| 2.000 | 0.049 | 1,546 | 3,864 | 966 | 75,000 | 30,000 |
| 2.000 | 0.065 | 2,086 | 5,214 | 1,303 | 75,000 | 30,000 |
| 2.000 | 0.083 | 2,715 | 6,788 | 1,697 | 75,000 | 30,000 |
| 2.000 | 0.095 | 3,149 | 7,873 | 1,968 | 75,000 | 30,000 |
| 2.000 | 0.109 | 3,670 | 9,175 | 2,294 | 75,000 | 30,000 |
| 2.000 | 0.120 | 4,091 | 10,227 | 2,557 | 75,000 | 30,000 |
| 2.000 | 0.134 | 4,642 | 11,605 | 2,901 | 75,000 | 30,000 |
| 2.000 | 0.148 | 5,211 | 13,028 | 3,257 | 75,000 | 30,000 |
| 2.000 | 0.165 | 5,928 | 14,820 | 3,705 | 75,000 | 30,000 |
Ss 304 Seamless Pipes Specification
Range : 6NB to 1200NB
Outer Diameter: 1/8″ NPS to 12″ NPS
Thickness: 0.6 mm to 12.7 mm
Pipe Specifications: ASTM A312, A358 / ASME SA312, SA358
Schedules: SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.
Length: Single Random, Double Random & Cut Length
Types: Round, Square, Rectangle, Hydraulic, Honed Tubes
End: Plain End, Beveled End
Hot Tags: 304 stainless steel pipe, a213 gr tp304 seamless, China 304 stainless steel pipe, a213 gr tp304 seamless manufacturers, suppliers, factory, 201 Stainless Steel Pipe, TP 316 Stainless Steel Pipe, Stainless Steel Pipe, 304 Stainless Steel Pipe, TP 304 Stainless Steel Pipe, Welded Stainless Steel Pipe
You Might Also Like
Send Inquiry
