S31603 American standard austenitic stainless steel, the implementation standard: ASTM A 959-2004, the domestic is 316L stainless steel.

Send Inquiry

Product Introduction

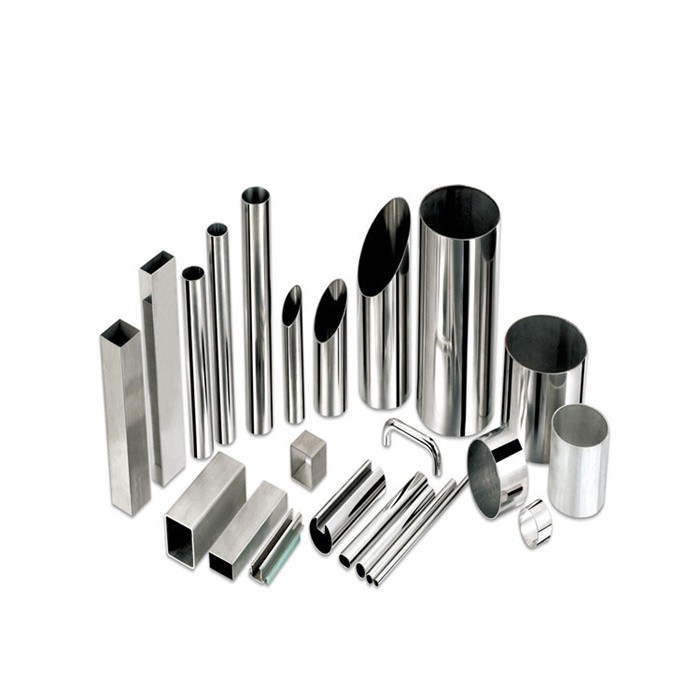

316 316l ss pipe tube

What is double standard stainless steel?

Double standard stainless steel refers to the optimization of two kinds of materials, such as 316 and 316L, starting the double standard is to take the high nickel content of 316, and then take the low carbon content of 316L, calmly and form a double standard material, its performance is better.
In addition to the double standard material, there are four standard materials, such as 1.4404/1.4401/316L/316 to form a lower carbon content, Cr content is better, nickel content is higher, and the performance is optimized.
Double standard or four standard is a new material, in simple terms, this new material can be used to make seamless pipes, can also be used to make welded pipes, can also be used to process into plates.

ASTM A312 tp316L Pipe Equivalent Grades

UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
	BS	En	No	Name
S31603	304S11	58E	1.4436	X3CrNiMo17-13-3	2348	SUS 316L

sus 316L Stainless Steel Pipe Composition

	C	Mn	Si	P	S	Cr	Mo	Ni	N
min.	–	–	–	–	–	16.0	2.0	10.0	–
max.	0.08	2.0	0.75	0.045	0.03	18.0	3.0	14.0	0.10

316L grade Stainless Steel Pipe Mechanical & Physical Properties

Mechanical Properties

Tensile Stress (MPa) min	Yield Stress 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
			Rockwell B (HR B) max	Brinell (HB) max
515	205	40	95	217

Physical Properties

Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
		0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
8000	193	15.9	16.2	17.5	16.3
