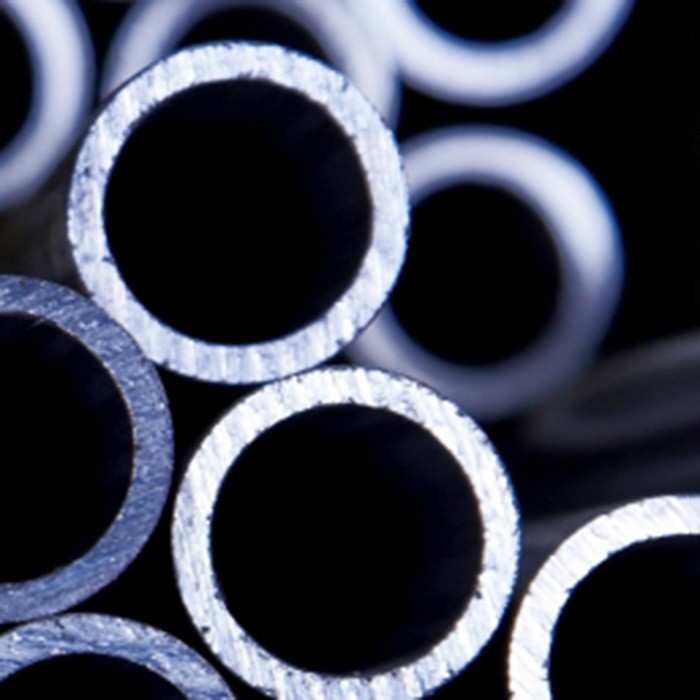

316 316l Stainless Steel Tube
316 316l stainless steel tube
Note that even if you choose 316L as the base material, you should choose the welding material of ER316L, if the welding material is not selected properly, such as the selection of ER316 or ER308 welding wire without L, it will sensitization and rust in the weld. In addition to the base material selection and welding reasons, if the weekend air is everywhere grinding iron powder, or with polished carbon steel wire brush and then grinding stainless steel, iron powder falls on the stainless steel, because of the electrochemical reaction, the same will produce rust, which is called iron ion pollution.
316 – 316L SS Welded Pipes composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | min. | – | – | – | – | – | 16.0 | 2.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 | |
Stainless Steel 316 Round Pipes mechanical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Equivalent Grades for SS 316 Hexagonal Pipes
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 304S11 | 58E | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
Packing & Delivery
Application
SURFACE
Product Testing
