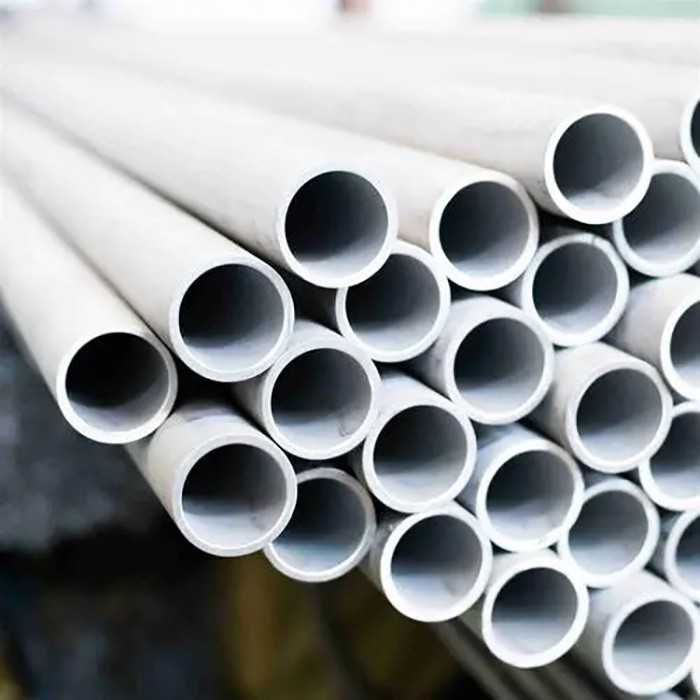

316L Stainless Steel Seamless Pipe
316L stainless steel seamless pipe is a reliable and durable piping solution that has gained immense popularity in various industries. Made with high-quality material and advanced manufacturing techniques, these pipes are able to withstand extreme temperature and pressure, making them ideal for use in critical applications.
One of the biggest advantages of 316L stainless steel seamless pipes is their corrosion resistance. These pipes are designed to resist corrosion caused by chemicals, acids, and even seawater, making them ideal for use in marine environments or in industries where harsh chemicals are used.
In addition to their corrosion resistance, 316L stainless steel seamless pipes are also highly durable. They have a long lifespan and require minimal maintenance, which makes them a cost-effective solution for various industries.
Another advantage of 316L stainless steel seamless pipes is their versatility. These pipes can be used in a wide range of applications including industrial, pharmaceutical, food processing, and many more. They are available in different sizes, thicknesses, and lengths, making it easy to find the right fit for specific needs.
ASME SA 312 TP 316L Pipe Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi - 75000 , MPa - 515 | Psi - 30000 , MPa - 205 | 35 % |
Chemical Composition Table Of TP316L Stainless Steel Pipe
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Equivalent Grades Of UNS S31603 Seamless Pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
ASTM A312 TP316L Allowable Stress
| Specification | SA-312 | SA-312 |
|---|---|---|
| SS Grade | TP316L | TP316L |
| Nominal Composition | 16Cr-12Ni-2Mo | 16Cr-12Ni-2Mo |
| Product Shape | Welded pipe | Seamless & Welded pipe |
| UNS designation | S31603 | S31603 |
| Sizes/ Thickness [mm] | - | - |
| P Number | 8 | 8 |
| Group Number | 1 | 1 |
| Minimum Tensile Strength [MPa] |
485 | 485 |
| Minimum Yield Strength [MPa] |
170 | 170 |
| I-Applic. and Maximum temperature limit [°C] |
454 | 454 |
| III-Applic. and Maximum temperature limit [°C] | NP | 427 |
| VIII-1-Applic. and Maximum temperature limit [°C] | 454 | 454 |
| XII-Applic. and Maximum temperature limit [°C] | 343 | 343 |
| External Pressure Chart No. |
HA-4 | HA-4 |
316L Stainless Steel Pipe Processing
| Stainless Steel 316L pipe Processing | |
|---|---|
|
Structural Cutting |
Products cut include pipes, tube, tubing, Square pipes, Rectangular pipes, round pipes Thickness range is 1/16" to 28" diameter |
|
Tubular Cutting |
Products cut include Ornamental Tube, Tubing and Hollow Bar. Thickness range is 1/16" to 28" diameter |
|
Production Cutting |
Steel Tubes Indiacan provide production cutting for product diameters up to 4". We utilize Amada Production Equipment to achieve these precision cuts with tight tolerances. |
|
Structural Polishing |
Products polished included all tubular products, with OD & ID polishing available |
