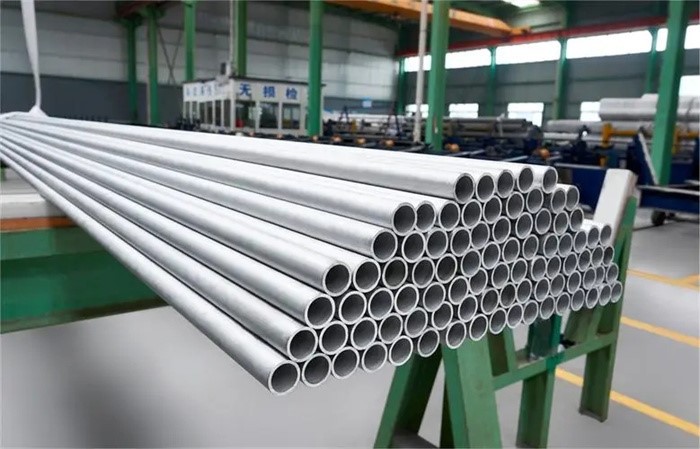

A312 Stainless Pipe
A312 stainless steel pipe is a high-quality and versatile type of pipe that is commonly used in various industries such as chemical, oil and gas, food processing, and pharmaceuticals. This type of pipe is made from high-quality stainless steel and is renowned for its exceptional strength, durability, and resistance to corrosion and heat.
There are many benefits to using A312 stainless steel pipes. They are highly resistant to corrosion and can withstand harsh and aggressive environments, making them a popular choice for applications such as chemical processing, oil and gas exploration, and marine environments. Due to their strength and durability, A312 stainless steel pipes are also widely used in construction and manufacturing industries.
Another major advantage of A312 stainless steel pipes is their easy maintenance and cleaning. They can be easily cleaned using soap and water, making them a hygienic option for use in food processing and pharmaceutical industries where cleanliness is of utmost importance.
In addition, A312 stainless steel pipes offer remarkable design flexibility and can be customized to fit any requirement. They are available in a variety of sizes and thicknesses, making them suitable for a wide range of projects. They can also be easily welded and bent, allowing for complex shapes and designs.
Stainless Steel 316 Seamless Tubing Specification
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG - 10 SWG
Outer Diameter : 3.00 mm - 219.10 mm
Wall Thickness : 0.40 mm - 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, "U" Shape, Hydraulic & Honed Tubes
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316 | S31600 | 1.4401 / 1.4436 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | - | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Chemical Composition
| SS | 316 |
| Ni | 10 - 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 - 3.00 |
Mechanical Properties
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Grade Specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
