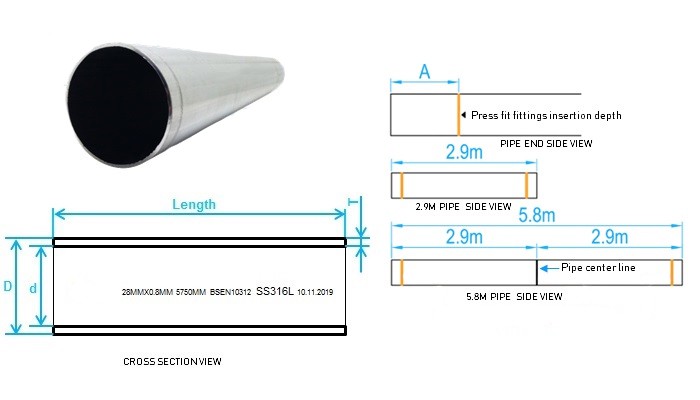

SS316 Seamless Pipe
SS316 seamless pipe is a modern technological innovation that has revolutionized many industries, including oil and gas, chemical processing, and pharmaceuticals. It has several advantages over traditional welded pipes, including better corrosion resistance, higher pressure tolerance, and better fluid flow characteristics.
One of the most significant benefits of 316 seamless pipe is its ability to withstand extreme temperatures and pressures. This makes it ideal for use in high-pressure applications, where safety and reliability are of utmost importance.
Furthermore, SS316 seamless pipe is highly durable and requires minimal maintenance, making it a cost-effective option in the long run. It is also easy to install, requiring only simple fittings and connections, which saves time and reduces installation costs.
Another advantage of seamless pipe is its excellent resistance to corrosion and pitting. This makes it resistant to harsh chemicals and corrosive elements found in many industrial environments. As a result, it is used extensively in chemical processing plants and offshore oil rigs.
What is 316L Stainless Steel Pipe?
Stainless Steel 316L Square Tube Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316L | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
316L Stainless Steel Exhaust Tube Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40 | 95 | 217 |
Properties for ss 316L tubing .125" OD or larger with .015" wall or heavier.
| Alloy | Temper | Tensile Strength KSI | Yield Strength KSI | Minimum Elongation in 2" (%) | Rockwell Hardness* |
|---|---|---|---|---|---|
| 316L | Annealed Half Hard Full Hard |
100 max. 110-140 140 min. |
30-50 70-110 110 min. |
35 15 6 |
B 95 max. B 95 - C 26 C 24 min. |
| Types | Out diameter | Sizes | Length |
|---|---|---|---|
| NB Sizes (in stock) | .0035” ~ 8” | 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" | Cut to length |
| Stainless Steel 316L Seamless Tube (Custom Sizes) | 6.35 mm OD To 101.6 mm OD | As per requirement | Cut to length |
| Stainless Steel 316L Welded Tube (ERW Tube) (in Stock + Custom Sizes) | 6.35 mm OD To 152 mm OD | As per requirement | Cut to length |
