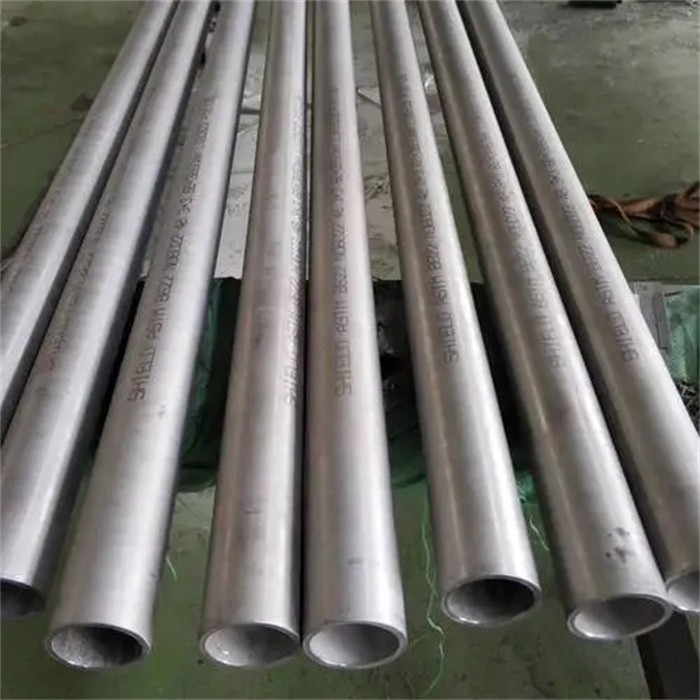

Sa213 Tp316
The special alloy composition of SA213 TP316 makes it have strong corrosion resistance and can be used in harsh environments such as acidic, alkaline and chloride ions. At the same time, it also has high thermal stability, can withstand high temperature and high pressure working conditions, will not be deformed due to temperature changes.
In recent years, some important projects at home and abroad have begun to use SA213 TP316 stainless steel pipes to meet the needs of high-demand environments. It has become the main material of many new projects and has been widely used.
The advantage of SA213 TP316 is not only its excellent performance, but also its exquisite workmanship and reliable quality. Our manufacturer has advanced production technology and equipment to ensure the precision and quality of the pipe. We also offer a variety of surface treatments and machining methods to meet the different needs of our customers.
In summary, SA213 TP316 is a very excellent stainless steel pipe, and its excellent performance and quality reliability are widely recognized in the industrial field. We believe that with the continuous development of the market and the continuous improvement of demand, it will show more extensive application prospects in the future application.
|
Description |
Stainless Steel Pipe/Tube |
||
|
Material&Standard&Size
|
A>Machine Structure and Decoration used in Stainless Steel Pipe Material: 201,202,301,304,304L,310S,316,316L,321,347 |
||
|
B>Industry used in Stainless Steel Pipe Material:304,304L,316,316L Diameter:13.7mm-1000mm C>Boiler Heat-exchange and Condenser use the Stainless Steel Pipe Standard:ASTM A249,JIS G3463,DIN17457 Material:304,304L,316,316L Diameter:13.7mm-1000mm D>Food Safety use the Stainless Steel Pipe Material:304,304L,316,316L Size:Diameter:15.9mm-165.2mm |
|||
|
Length |
500mm,1M,2M,3M,5M,5.8M,6M,9M,10M,11.8M or according to the customers’ requirement |
||
|
Surface Treatment |
Polished(Grade:Polished 180#,220#,240#,320#,400#,600#),Hair Line,Annealing |
||
|
Technical |
Hot Rolled,Cold Drawn |
||
|
Type |
Seamless and Welded |
||
| Chemical Composition |
Material Composition |
201 | 304L | 304 | 316 | 316L |
| C | ≤0.15 | ≤0.03 | ≤0.08 | ≤0.08 | ≤0.03 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤2.00 | |
| P | ≤0.06 | ≤0.035 | ≤0.035 | ≤0.035 | ≤0.035 | |
| S | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
| Cr | 16-18 | 18-20 | 18-20 | 16-18 | 16-18 | |
| Ni | 3.5-5.5 | 8-12 | 8-10.5 | 10-14 | 10-14 | |
| Mo | 2.0-3.0 | 2.0-3.0 | ||||
| Mechanical Property | Material Item | 201 | 304L | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥40% | ≥35% | ≥35% | ||
| Hardness (HV) | <253 | <200 | <200 | <200 | ||
|
OD, mm |
OD Tolerance |
|||
|
< 25.4 |
+/- 0.10 |
|||
|
25.4 – <= 38.1 |
+/- 0.15 |
|||
|
> 38.1 -< 50.8 |
+/- 0.20 |
|||
|
50.8 -< 63.5 |
+/- 0.25 |
|||
|
63.5 -< 76.2 |
+/- 0.30 |
|||
|
76.2 – <= 101.6 |
+/- 0.38 |
|||
|
> 101.6 – <= 190.5 |
+0.38/-0.64 |
|||
|
> 190.5 – <= 228.6 |
+0.38/-1.14 |
|||
Surface
A.. Good dimensional accuracy
OD:OD:+/-0.03mm;Thickness:+/-0.03mm;Length:+/-0.1mm;Ovality:≤0.1mm
B. Excellent surface roughness
Outside surface:Ra≤0.6µm Inside surface:Ra≤0.3µm
It is widely used in transport fluid pipe,such as Oil,Water,Natural Gas,Coal Gas etc,
It is also widely used in Machine Department Made and Building Construction because of the light weight and same tensile strength
