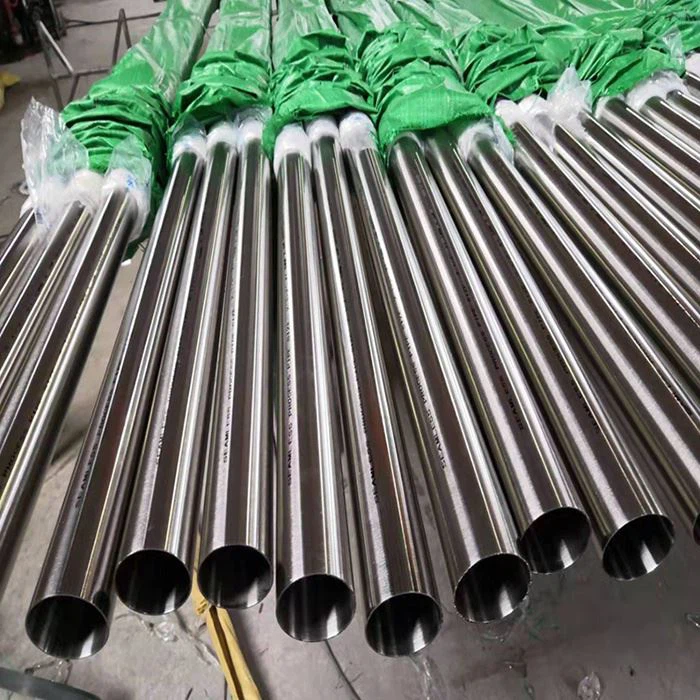

Schedule 10 Stainless Steel Pipe 316L Tubing
316L grade 00Cr17Ni14Mo2(old number) 022C17N12M2(new grade) is equivalent to the American standard TP316L and Japanese standard SUS316L, which is simply 316L material
Send Inquiry
Product Introduction
schedule 10 stainless steel pipe 316L tubing
TP316L
Is the steel American standard label, indicating the steel material of stainless steel pipe.
Interpretation of US standard model:
TP
An abbreviation of the English word TYPE.
L
It's LOW.
An abbreviation of an English word.
Because TP316L
It's not the same carbon content as 316, so TP316L
It means low-carbon stainless steel.
The lowest carbon content of 316L is 0.035%, 316
It's 0.08%.
Chemical Structure of 316L SS ERW Pipe
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 316L | .035 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
UNS S31603 Rectangular Pipe Mechanical Properties Tensile Strength
| Grade | Tensile | ||||
|---|---|---|---|---|---|
| Ultimate/Min | Yield/Min | Elongation/Min | |||
| KSI | MPA | KSI | MPA | % | |
| 316L | 70 | 485 | 25 | 170 | 35 |
Equivalent material of Stainless Steel 316L Pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
ASTM A312 Gr TP316L Welded Pipe Roughness
| MATERIAL SURFACE | ABSOLUTE ROUGHNESS COEFFICIENT Ε MM |
|---|---|
| Aluminum Alloy, Lead | 0.001 - 0.002 |
| Drawn Copper/ Brass | 0.0015 |
| SS 316L | 0.015 |
Physical Analysis of 316L Stainless Steel Square Tube
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Application
Packing & Delivery
SURFACE
Product Testing
