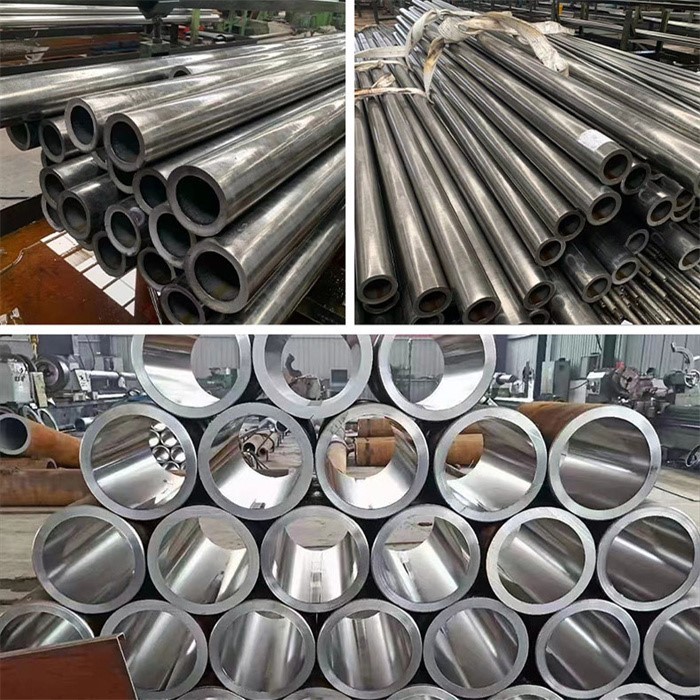

316L Tubing

316L tubing

316l is a stainless steel material grade, which is a high-quality stainless steel belonging to the Austenitic system. Mainly containing cr, ni, mo numbers indicate the approximate percentage (not accurate, just approximate), 316l is the corresponding US label for this material, sus
316l is the corresponding Japanese label. Our standard brand is 022cr17ni12mo2. (New standard) The old brand is 00cr17ni14mo2. The corrosion resistance of 316l is strong, and the added mo content can make the steel have excellent pitting resistance.

Stainless Steel 316L Pipe Chemical Composition



Typical Chemical Composition % (maximum values, unless noted)

Weight %	C	Mn	P	S	Si	Cr	Ni	Mo
SS 316 Pipe	.08	2.00	.045	.030	1.00	16.0-18.0	11.0-14.0	2.0-3.0
SS 316L Pipe	.035	2.00	.045	.030	1.00	16.0-18.0	10.0-14.0	2.0-3.0

316L Stainless Steel Pipe Mechanical Properties



Grade	Tensile Strength
	Ultimate /Min		Yield Strength/ Min		Elongation/Min
	KSI	MPA	KSI	MPA	%
SS 316 Pipe	75	515	30	205	35
SS 316L Pipe	70	485	25	170	35

SS 316L Seamless Pipe Equivalent Grade



Grade	UNS No	Old British		Euronorm / EN		Swedish SS	Japan JIS
		BS	En	No	Name
316L	S31603	304S11	58E	1.4436	X3CrNiMo17-13-3	2348	SUS 316L



Application

Packing & Delivery

SURFACE

Product Testing
