Stainless Steel Seamless Pipe Size Chart

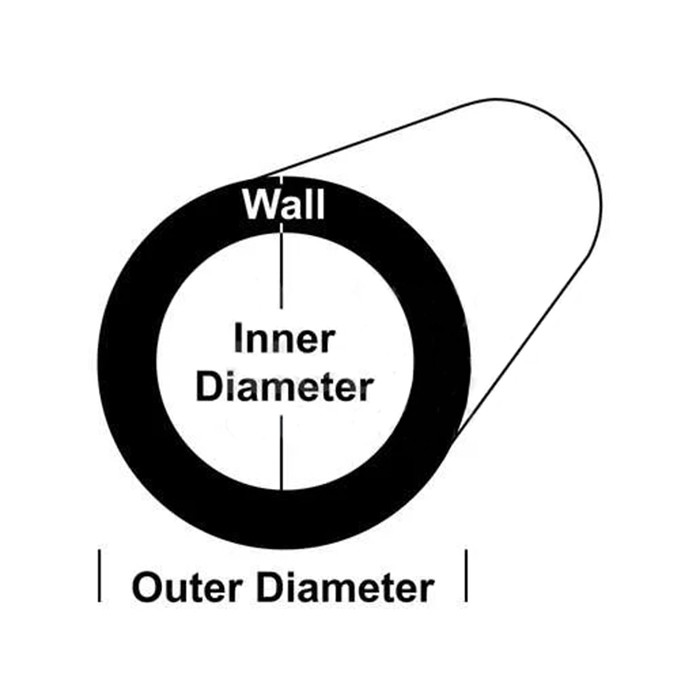

Stainless steel seamless pipe size chart is used by industry professionals to ensure proper sizing and compatibility for their applications. This chart includes information on the outside diameter, wall thickness, and weight per foot of different sizes of stainless steel pipes.
Using this chart, professionals are able to accurately select the appropriate size pipe for their application, reducing the likelihood of equipment failures or safety issues. Additionally, stainless steel seamless pipes are known for their durability, resistance to corrosion, and ease of maintenance, making them a popular choice for industries such as oil and gas, chemical processing, and food and beverage.
Even though stainless steel seamless pipes may come at a higher cost compared to other materials, their long-term benefits outweigh the initial investment. They offer superior performance, longer service life, and lower maintenance costs.
In conclusion, the stainless steel seamless pipe size chart is a valuable resource for industry professionals. It helps them select the proper size and grade of stainless steel pipe for their applications, ensuring the reliability and efficiency of their operations. With the many benefits of stainless steel, investing in this high-quality material is a smart choice for any industry.
| OD in | Wall Thickness | NB Size | Schedule | Kg/m |
| mm | mm | |||
| 13.72 | 1.65 | ¼ | 10S | 0.5 |
| 13.72 | 2.24 | ¼ | 40S | 0.64 |
| 13.72 | 3.02 | ¼ | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.2 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 21.34 | 4.78 | 1/2 | 160S | 1.98 |
| 21.34 | 7.47 | 1/2 | xx strong | 2.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.3 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 26.67 | 5.56 | 3/4 | 160S | 2.94 |
| 26.67 | 7.82 | 3/4 | xx strong | 3.69 |
| 33.4 | 2.77 | 1 | 10S | 2.13 |
| 33.4 | 3.38 | 1 | 40S | 2.54 |
| 33.4 | 4.55 | 1 | 80S | 3.29 |
| 33.4 | 6.35 | 1 | 160S | 4.3 |
| 33.4 | 9.09 | 1 | xx strong | 5.75 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.35 | 1¼ | 160S | 5.69 |
| 42.16 | 9.7 | 1¼ | xx strong | 7.88 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 48.26 | 7.14 | 1½ | 160S | 7.35 |
| 48.26 | 10.16 | 1½ | xx strong | 9.69 |
| o/d in mm | wall in mm | NB Size | Schedule | kg/mtr |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.68 | 2 | 40S | 5.52 |
| 60.33 | 5.08 | 2 | 80S | 7.6 |
| 60.33 | 8.74 | 2 | 160S | 11.29 |
| 60.33 | 11.07 | 2 | xx strong | 13.65 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 73.03 | 9.53 | 2½ | 160S | 15.15 |
| 73.03 | 14.02 | 2½ | xx strong | 20.7 |
| 88.9 | 3.05 | 3 | 10S | 6.56 |
| 88.9 | 5.49 | 3 | 40S | 11.47 |
| 88.9 | 7.62 | 3 | 80S | 15.51 |
| 88.9 | 11.13 | 3 | 160S | 21.67 |
| 88.9 | 15.24 | 3 | xx strong | 28.09 |
| 101.6 | 3.05 | 3½ | 10S | 7.53 |
| 101.6 | 5.74 | 3½ | 40S | 13.78 |
| 101.6 | 8.08 | 3½ | 80S | 18.92 |
| 114.3 | 3.05 | 4 | 10S | 8.5 |
| 114.3 | 6.02 | 4 | 40S | 16.32 |
| 114.3 | 8.56 | 4 | 80S | 22.67 |
| 114.3 | 13.49 | 4 | 160S | 34.05 |
| 114.3 | 17.12 | 4 | xx strong | 41.63 |
| 141.3 | 3.4 | 5 | 10S | 11.6 |
| 141.3 | 6.55 | 5 | 40S | 22.1 |
| 141.3 | 9.53 | 5 | 80S | 31.44 |
| 141.3 | 15.88 | 5 | 160S | 49.87 |
| 141.3 | 19.05 | 5 | xx strong | 58.28 |
| O/d in mm | wall in mm | NB Size | Schedule | Kg/Mtr |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120S | 54.75 |
| 168.28 | 18.26 | 6 | 160S | 68.59 |
| 168.28 | 21.95 | 6 | xx strong | 80.36 |
| 219.08 | 3.76 | 8 | 10S | 20 |
| 219.08 | 8.18 | 8 | 40S | 43.2 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120S | 91.3 |
| 219.08 | 23.01 | 8 | 160S | 112.97 |
| 273.05 | 4.19 | 10 | 10S | 27.8 |
| 273.05 | 9.27 | 10 | 40S | 60.3 |
| 273.05 | 12.7 | 10 | 80S | 81.6 |
| 323.85 | 4.57 | 12 | 10S | 36 |
| 323.85 | 9.53 | 12 | 40S | 73.9 |
| 323.85 | 12.7 | 12 | 80S | 97.5 |
