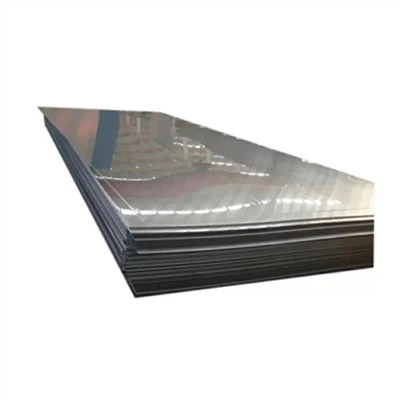

0.3mm Thick 316 Stainless Steel Metal Sheet
The 0.3mm thick 316 stainless steel metal sheet is a high-quality material that offers durability and strength. This sheet is made from one of the most corrosion-resistant metals available, ensuring its long-lasting and reliable performance.
With its thin profile, this 316 stainless steel sheet can be easily formed and shaped to fit various industrial and commercial applications. Plus, its resistance to heat and chemicals makes it an ideal choice for harsh environments.
Beyond its functional properties, this stainless steel sheet also provides an aesthetically pleasing appearance that can enhance the visual appeal of any project it's incorporated into. The shine and finish of this sheet can bring a modern and sleek look to any design.
The thickness of a 316 Stainless Steel Metal Sheet can come in many different sizes, the following are some common ones:
-0.018 "(about 0.46mm)
-0.024 "(about 0.61mm)
-0.030 "(about 0.76mm)
-0.036 "(about 0.91mm)
-0.048 "(about 1.22mm)
-0.060 "(about 1.52mm)
-0.075 "(approx. 1.91mm)
-0.105 "(about 2.67mm)
-0.120 "(about 3.05mm)
-0.135 "(about 3.43mm)
-0.1875 "(approx. 4.76mm)
-0.250 "(about 6.35mm)
Equivalent Material of Stainless Steel 316 316L
|
Grade |
Euronorm |
China GB |
Japanese JIS |
|
No. |
|||
|
316 |
1.4401 |
0Cr17Ni12Mo2 |
SUS316 |
|
316L |
1.4404 |
022Cr17Ni12Mo2 |
SUS316L |
Chemical Composition of Stainless Steel 316 316L
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min. |
≤0.08 |
≤2.00 |
≤1.00 |
≤0.035 |
≤0.03 |
16.0-18.5 |
2.0-3.0 |
10.0-14.0 |
- |
|
316L |
Max. |
≤0.03 |
≤2.00 |
≤1.00 |
≤0.045 |
≤0.03 |
16.0-18.0 |
2.0-3.0 |
10.0-14.0 |
- |
|
316 |
316L |
|
The tensile strength (MPa) was 620 MIN |
Tensile strength σb (MPa) : ≥480 |
|
The yield strength (MPa) was 310 MIN |
Conditional yield strength σ0.2 (MPa) : ≥177 |
|
Elongation rate (%) 30 MIN |
Elongation Δ5 (%) : ≥40 |
|
Area reduction (%) 40 MIN |
Section shrinkage ψ(%) : ≥60 |
|
|
Hardness: 187 hb or less; |
|
|
90 HRB or less; |
|
|
200 hv or less |
|
|
Density: 7.98g/cm3; |
|
|
Specific heat capacity ratio (20℃) : 0.502J/(g*K) |

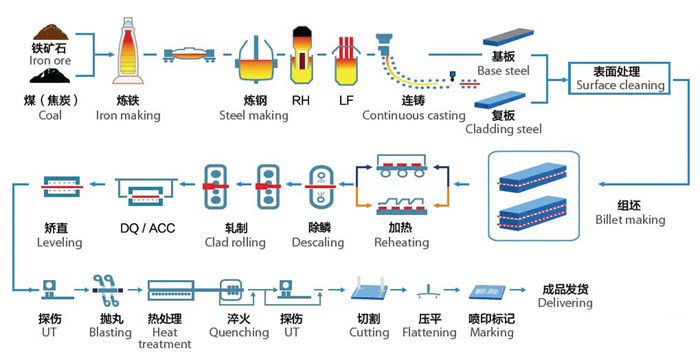

Productive process
1. Melting: The raw materials for stainless steel, such as iron, nickel, chromium, and other elements, are melted together in an electric furnace. This process can take up to 12 hours.
2. Casting: The molten steel is then cast into semi-finished forms, such as slabs, blooms, or billets. These forms can be further processed into finished products.
3. Hot Rolling: The semi-finished steel is heated and passed through large rollers to reduce its thickness and make it more uniform. This process also improves the steel's strength and formability.
4. Cold Rolling: The steel is further reduced in thickness at room temperature. This process gives the steel a smooth surface and further improves its mechanical properties.
5. Annealing: The steel is heated to a specific temperature and then cooled slowly. This process relieves stresses in the steel, improves its ductility, and refines its grain structure.
6. Pickling: The steel is immersed in a solution of acid and water to remove scale, rust, and other impurities from its surface.
7. Passivation: The steel is treated with a mild oxidant to form a thin, protective layer of chromium oxide on its surface. This layer helps to prevent corrosion.
8. Cutting: The steel is cut into sheets of the desired size.
9. Inspection and Testing: The finished 316 stainless steel sheets are inspected for defects and tested to ensure they meet the required mechanical properties.
10. Packaging: The sheets are packaged for storage or shipment.
Steel Billet:
Materials Mill
1. 200 series: WuHang, Baosteel, Jinhui, YouYi, Tsingshan, RuiTian, LianZhong,
2. 300 series: TISCO, ZPSS, BaoXin, Krupp, LianZhong, JiuGang, TaiShan Steel,
3. 400 series: TISCO, BaoXin, Krupp, JiuGang, Baosteel
Common: 2B, 2D, HL(Hairline), BA(Bright annealed), No.4
Colored: Gold mirror, Sapphire mirror, Rose mirror, black mirror, bronze mirror;
Gold brushed, Sapphire brushed, Rose brushed, black brushed et
