316 Stainless Steel Sheet/Plate
316 Stainless Steel Sheet/Plate is a top-quality product that is widely used in various applications due to its exceptional resistance to corrosion and staining. This type of steel is known for its high strength, durability, and versatility, making it ideal for use in a wide range of industries.
The 316 Stainless Steel Sheet/Plate is made of high-quality materials and is carefully crafted to meet the highest standards of quality and performance. It is designed to withstand harsh conditions and extreme temperatures, providing long-lasting durability and reliability.
This product is available in a range of sizes, thicknesses, and finishes, and can be customized to meet specific needs. It is widely used in applications ranging from food processing and chemical plants to marine and architectural projects.
The key features of the 316 Stainless Steel Sheet/Plate include its exceptional corrosion resistance, good weldability, and high strength. It is also easy to maintain and clean, making it an ideal choice for applications that require hygiene and cleanliness.
Product information
1. Size specifications: The common dimensions of include thickness, width, length, etc., and different size specifications can be customized according to different needs.

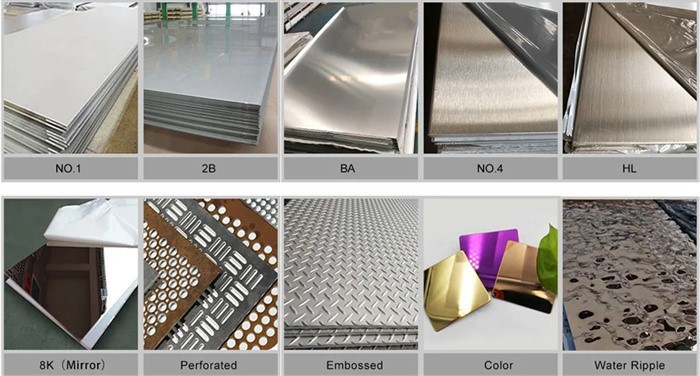

2. Surface treatment: The surface of can be polished, pickling, matte and other treatment to increase its beauty and corrosion resistance.
3. Corrosion resistance: a kind of corrosion resistant steel, with oxidation resistance, acid and alkali resistance, salt corrosion resistance and seawater corrosion characteristics, especially suitable for chemical industry, Marine and other fields.
4. Mechanical properties: good mechanical properties, high tensile strength and yield strength, and has good ductility and impact toughness.
5. Application: widely used in petrochemical, shipbuilding, medical equipment, food processing, machinery manufacturing and other fields, is a high-quality corrosion-resistant material.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
Raw Materials Certificate EN 10204/3.1B 100% Radiography Test Report High special strength, high melt point Third Party Inspection Report, etc Excellent corrosive resistance, good thermal resistance Customer support after-sales service Strict Control from Raw Material to Finished |
| Profiling |
To provide a full profiling service we use numerous profiling methods including: Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Specialized in |
material under 3/16 " [5.00 mm] in thickness and 24" [600 mm] and over in width material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width Free Quote, Inquiry answered within 24 hours |
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
Chemical Structure of ASME SA240 316 Plate
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Mechanical Analysis of 316 Stainless Steel Coil
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi - 75000 , MPa - 515 | Psi - 30000 , MPa - 205 | 35 % |
Material Equivalent of SS A240 316 Foil
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
