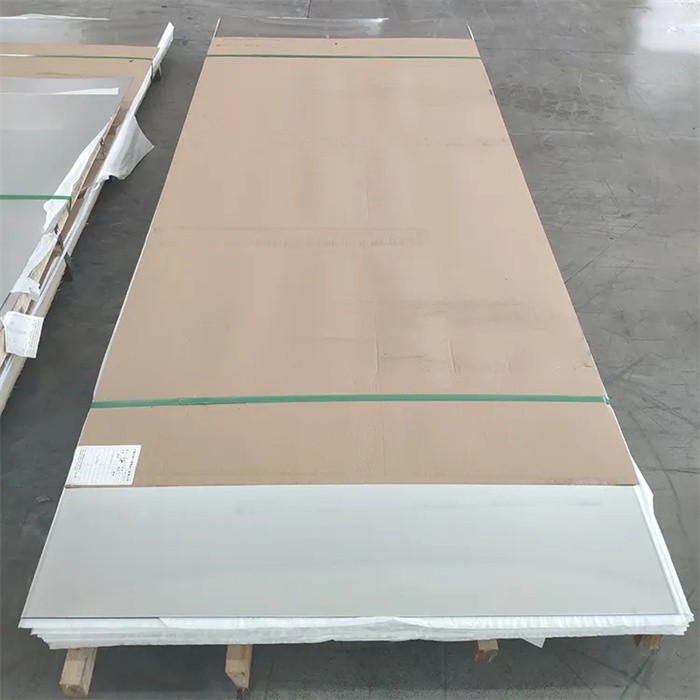

2205 Duplex Stainless Steel Plate
2205 Duplex Stainless Steel Plate
2205 Duplex Stainless Steel Plate
2205 Duplex Stainless Steel Plate
2205 Duplex Stainless Steel Plate

2205 Duplex Stainless Steel Plate

There are many reasons why 2205 duplex stainless steel plate is a popular choice for engineers and designers around the world. With its exceptional strength, durability, and resistance to corrosion, this alloy is sure to continue to play a critical role in many industries for years to come.

Send Inquiry

Product Introduction

2205 duplex stainless steel plate is a popular and highly sought-after material in the engineering and construction industries. This alloy is known for its exceptional strength, durability, and resistance to corrosion, making it an ideal choice for a variety of applications.

In addition to its mechanical properties, 2205 duplex stainless steel plate boasts excellent weldability and formability, making it easy to fabricate and manipulate into a variety of shapes and designs. Plus, this alloy is also highly resistant to a wide range of chemicals, acids, and other corrosive substances, making it a top choice for high-temperature and high-pressure applications.

Prominent Features

1. Excellent Corrosion Resistance: 2205 duplex plate showcases exceptional resistance against corrosion caused by acids, alkalis, and other chemicals. It can also withstand stress corrosion cracking and pitting better than other stainless steels.

2. High Strength and Durability: This grade of stainless steel has a higher yield and tensile strength as compared to other types of stainless steels. With its exceptional toughness and ductility, it provides excellent impact and fatigue resistance.

3. Versatility: 2205 stainless steel sheet is used in a variety of applications in different industries such as chemical processing, marine engineering, oil and gas refineries, and many other manufacturing processes.

4. Cost-Effective: While being an alloy of two different stainless steel grades, duplex 2205 sheet is relatively less expensive than some high-performance stainless steels but still delivers excellent mechanical and corrosion resistance properties.

5. Ease of Fabrication: Alloy 2205 - Duplex Stainless Plate is easy to machine and weld. It can be cut, formed and shaped into different parts and components as per the requirements of the project.

stainless steel sheet 2205

Duplex Stainless Steel 2205

Product:	S32205 Duplex Steel Plate / Pipe / Bar / Strip With Strong Corrosion Resistance	Material:	S32205 Duplex Steel
Material Shape:	Plate / Pipe / Bar / Strip	Technique:	Cold Rolled /Hot Rolled/Forged/Hot Rolled/Cold Drawn
Size:	Stanfard Or Customized	Processing Service:	Available

Chemical Composition of ASTM A240 Type 2205 Plate

Element		Percent By Weight
Cr	Chromium	22.0 - 23.0%
Ni	Nickel	4.5 - 6.5%
Mn	Manganese	2.0% max
Si	Silicon	1.0% max
P	Phosphorous	0.03% max
S	Sulfur	0.02% max
C	Carbon	0.03% max
N	Nitrogen	0.1 - 0.2%
Mo	Molybdenum	3.0 - 3.5%
Fe	Iron	Balance

2205 stainless steel plate Size of duplex stainless steel Plate & Strip

SIZE	thickness:0.3mm-50mm
	width:1000mm 1219mm 1250mm 1500mm 1800mm 2000mm or as your requirement
	Length: 2000mm 2438mm 2500mm 3000mm 3048mm 5800mm 6000mm or as your requirement

Size of duplex stainless steel Welded Pipe

SIZE	OD : 6-159 mm
	Wall Thickness : 0.15-3.0mm
	Length: 6m or as your requirement

Size of duplex stainless steel Seamless Pipe

SIZE	OD : 6-630 mm
	Wall Thickness : 1-50mm
	Length: 6m or as your requirement

Size of duplex stainless steel Bar

Round & Hexagonal	Diameter:2~800mm Length:5.8m,6m,or as required.
Flat	Thick:0.3-200mm Width:1-2500mm Length:2m,5.8m,6m,or as required
Square	Size:22-800800mm Length:3m,5.8m,6m,or as required
Angle	Size:440.5-40040020mm Length:3m,5.8m,6m,or as required

ASTM A240 Type 2205 Plate melting range

ASTM A240 Type 2205 Plate melting range

2525-2630°F

Specific Heat Capacity at 212°F	0.119 Btu/lb/°F
Thermal Conductivity at 212°F	8.4 Btu/hr-ft-°F
Poisson’s Ratio	0.3
Elastic Modulus at 72°F	29 x 10 psi
