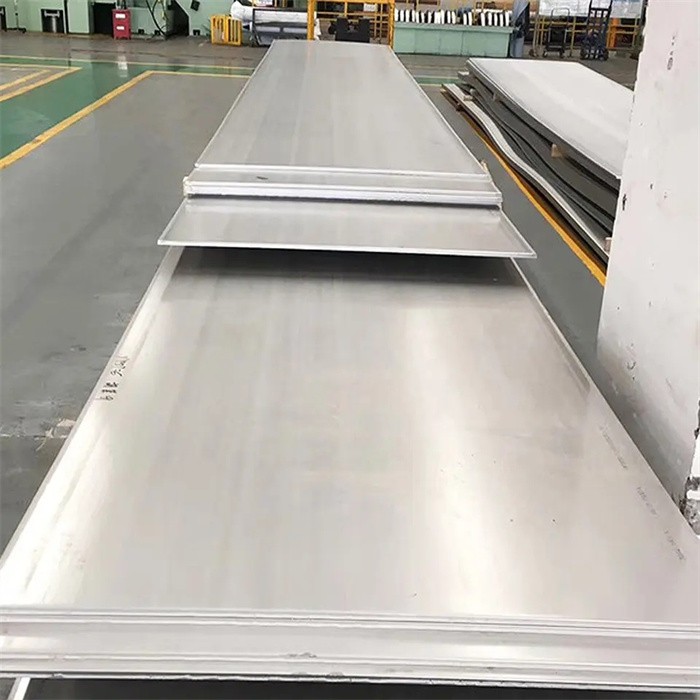

310s Stainless Steel Sheet
310s stainless steel sheet is a highly versatile and durable material that is used in a wide range of applications. This type of steel is known for its high resistance to corrosion and heat, making it ideal for use in environments that are exposed to extreme temperatures, such as industrial ovens and furnaces.
One of the key benefits of 310s stainless steel is its ability to withstand high temperatures without losing its strength or integrity. This means that it is a popular material choice for products that are used in high-temperature applications, such as heat exchangers and boilers.
In addition to its high heat resistance, 310s stainless steel is also incredibly durable and long-lasting. It is resistant to both corrosion and abrasion, which means that it can withstand heavy use and still maintain its appearance over time. This makes it an excellent choice for architectural applications, such as cladding and roofing.
Finally, 310s stainless steel is also easy to work with and can be cut, shaped, and welded using standard techniques. This makes it a popular choice for manufacturers who need a material that can be easily customized to meet their specific needs.
Chemical Composition (%) of 310S Stainless Steel Plate
| % | Cr | Ni | C | Si | Mn | P | S | Mo | Cu |
| 310S | 24.0-26.0 | 19.0-22.0 | 0.08 | 1.00 | 2.0 | 0.045 | 0.030 | 0.75 | 0.5 |
Mechanical Properties of 310S Stainless Steel Plate
| Tensile Strengtd ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation - % in 50 mm (min.) | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 75 | 30 | 40 | 217 | 95 |
Physical Properties of 310S Stainless Steel Plate
| Density lb/inᶟ | 0.285 |
| Density g/cmᶟ | 7.89 |
| Melting Range | 2470-2555°F/1354 – 1402 °C |
| Thermal Conductivity at 212°F (100°C) | 8.0 BTU/hr/ft²/ft/°F |
| Thermal Conductivity at 212°F (100°C) | 10.8 W/m-°K |
| Electrical Resistivity | 30.7 Microhm-in at 68°C |
| Electrical Resistivity | 78 Microhm-cm at 20°C |
Applications
- Furnaces
- Oil burners
- Heat exchangers
- Welding filler wire and electrodes
- Cryogenics
- Kilns
- Food processing equipment
