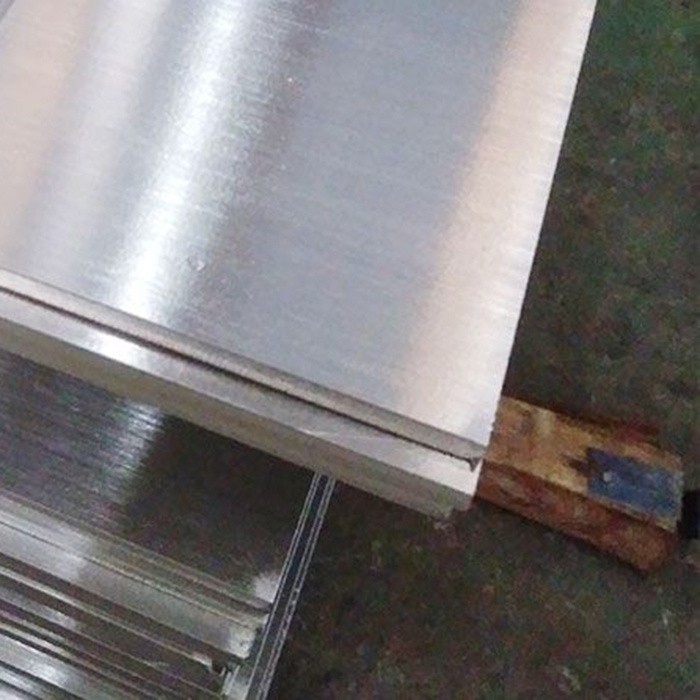

316 2b Ba 8K Mirror Surface Ss Sheet

316 2b Ba 8K Mirror Surface Ss Sheet

- Grade: 316
- Surface Finish: 2B, BA, 8K mirror
- Size: unspecified

Grade 316 is a commonly used austenitic stainless steel with good corrosion resistance, high temperature strength, and excellent mechanical properties. The "2B" and "BA" surface finishes are typically smooth and uniform, with a dull and bright appearance, respectively. The "8K mirror" finish is a highly reflective surface that is achieved by polishing the sheet with fine abrasives up to 800 grit.

The application of this type of sheet will depend on the specific requirements of the project. However, due to its corrosion resistance and aesthetic appeal, it is commonly used in the manufacturing of architectural, chemical, and food processing equipment.

Chemical Compostion and Properties

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16.0	2.00	10.0	-
	Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316L	Min	-	-	-	-	-	16.0	2.00	10.0	-
	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316H	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
	max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

Mechanical and Physical Properties



Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217
316L	485	170	40	95	217
316H	515	205	40	95	217

PHYSICAL PROPERTIES

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Application



Available Surface

Factory Equipment
