3mm 316 Stainless Steel Sheet
When it comes to metal sheets, few materials can match the strength, durability, and corrosion resistance of stainless steel. And among the different types of stainless steel available, the 316 grade is a popular option due to its superior performance in harsh environments.
At 3mm thickness, 316 stainless steel sheet is a robust and versatile material that can be used for a variety of applications, such as industrial machinery, marine equipment, food processing, and medical equipment. The material provides excellent resistance to chemicals, acids, and alkalis, making it ideal for harsh and corrosive environments.
Aside from its mechanical properties, 316 stainless steel sheet also offers an aesthetically pleasing finish that can enhance the look and feel of any project. With a smooth and polished surface, the material not only looks great but is also easy to clean and maintain.
While stainless steel can be more expensive than other materials, it's important to consider its long-term benefits. With its high resistance to corrosion and wear, 316 stainless steel sheet is a cost-effective option that can last for years without needing frequent replacements or repairs.
316 stainless steel plate is one of the commonly used stainless steel materials, which has corrosion resistance and heat resistance. 316 stainless steel plate thickness has a variety of sizes, the main sizes will be listed below.
Under normal circumstances, the thickness of 316 stainless steel plate ranges from 0.30mm to 100mm, the specific size is as follows:
0.30mm, 0.50mm, 0.70mm, 0.90mm, 1.00mm, 1.20mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 4.00mm, 5.00mm, 6.00mm, 8.00mm, 10.00mm, 12.00mm, 15.00m m, 20.00mm, 25.00mm, 30.00mm, 35.00mm, 40.00mm, 45.00mm, 50.00mm, 60.00mm, 70.00mm, 80.00mm, 90.00mm, 100.00mm.
These sizes of 316 stainless steel plates can be widely used in shipbuilding, chemical, food processing, pharmaceutical, construction and other fields. Whether for production or daily use, 316 stainless steel plate is one of the most important materials.
When using 316 stainless steel plate, it is necessary to pay attention to avoid negative content. For example, do not use in an acidic environment for a long time, do not contact with ammonia alloy, sulfuric acid, hydrochloric acid and other highly corrosive substances, so as to avoid damage to the stainless steel plate. At the same time, pay attention to maintenance and cleaning to avoid oxidation, rust and other situations. Only the correct use and maintenance, in order to better play the advantages of 316 stainless steel plate, while protecting the safety of themselves and others.
Chemical Composition
Spec: EN 10088-2:2005
1.4401 Steel
| Chemical Element | % Present |
|---|---|
| Carbon (C) | 0.0 - 0.07 |
| Chromium (Cr) | 16.50 - 18.50 |
| Molybdenum (Mo) | 2.00 - 2.50 |
| Silicon (Si) | 0.0 - 1.00 |
| Phosphorous (P) | 0.0 - 0.05 |
| Sulphur (S) | 0.0 - 0.02 |
| Nickel (Ni) | 10.00 - 13.00 |
| Manganese (Mn) | 0.0 - 2.00 |
| Nitrogen (N) | 0.0 - 0.11 |
| Iron (Fe) | Balance |
Properties
| Physical Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | 1400 °C |
| Thermal Expansion | 15.9 x10^-6 /K |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.3 W/m.K |
| Electrical Resistivity | 0.74 x10^-6 Ω .m |
Spec: EN 10088-2:2005
Sheet - Up to 8mm Thick
| Mechanical Property | Value |
|---|---|
| Proof Stress | 240 Min MPa |
| Tensile Strength | 530 to 680 MPa |
| Elongation A50 mm | 40 Min % |
Spec: EN 10088-2:2005
Plate - From 8mm to 75mm Thick
| Mechanical Property | Value |
|---|---|
| Proof Stress | 220 Min MPa |
| Tensile Strength | 520 to 670 MPa |
| Elongation A50 mm | 45 Min % |
Supplied Forms
Sheet
Strip
Tube
Bar
Pipe
Plate
Fittings & Flanges

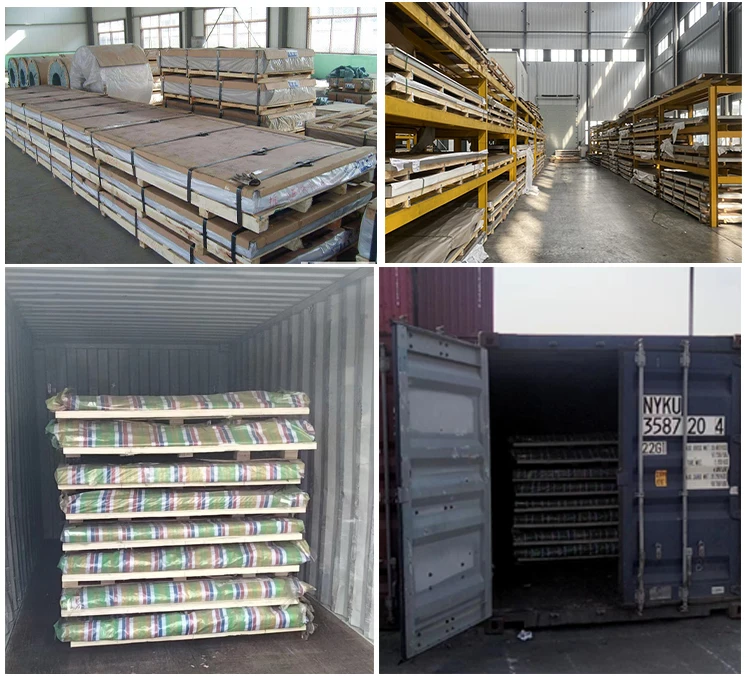

Packing & Delivery
FAQ
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirement
