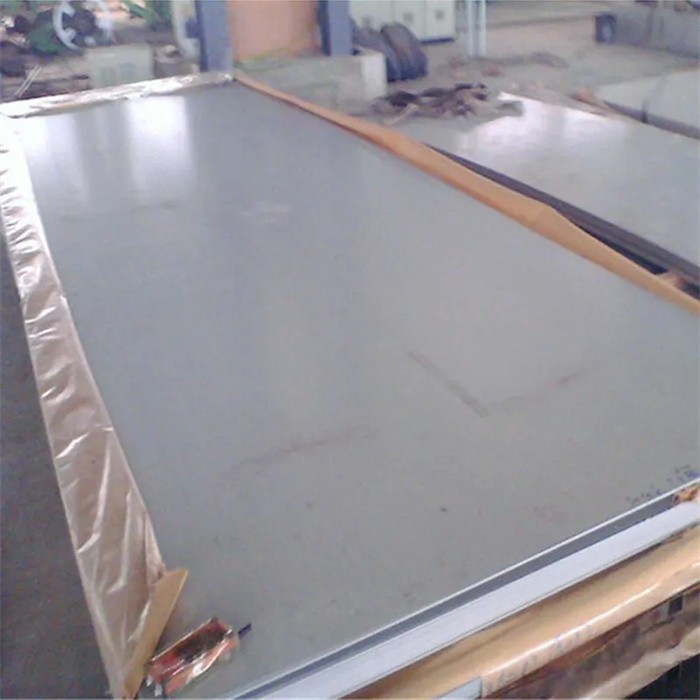

430 Stainless Steel Strip, Coil & Sheet
430 stainless steel is a high-quality material commonly used in various industries due to its excellent characteristics. This material is known for its durability, high resistance to corrosion, and ability to withstand extreme temperatures, making it perfect for use in harsh environments.
The 430 stainless steel strip, coil, and sheet are widely used in various applications, from automotive industries to construction, kitchenware, and medical equipment. The material's versatility and strength make it a popular choice among engineers and designers who are looking for a reliable material that can withstand a range of conditions.
One of the most notable characteristics of 430 stainless steel is its resistance to corrosion. This property makes it an ideal material to use in harsh industrial environments where exposure to chemicals, moisture, and other corrosive substances is common. Additionally, 430 stainless steel is highly resistant to heat, making it an excellent material to use in high-temperature applications.
Another favorable quality of 430 stainless steel is that it is relatively easy to work with. This material is easy to cut, bend, and weld, making it a popular choice for many industrial applications. It is also a cost-effective material compared to other types of stainless steel, making it an ideal option for many businesses.
Mechanical Properties
Table 2 - Mechanical properties of grade 430 stainless steels
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||||||
| Rockwell B (HR B) max | Brinell (HB) max | |||||||||
| 430 | 483 | 310 | 22 | 85 | 183 | |||||
Physical Properties
Table 3 - Physical properties of grade 430 stainless steels in the
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| (μm/m/°C) | (W/m.K) | ||||||||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 430 | 7750 | 200 | 10.4 | 11 | 11.4 | 26.1 | 26.3 | 460 | 600 |
Grade Specification Comparison
Table 4 - Grade specifications for 430 stainless steels
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||||
| BS | En | No | Name | ||||||
| 430 | S43000 | 430S17 | 60 | 1.4016 | X8Cr17 | 2320 | SUS 430 | ||
Heat Resistance
The heat resistance of 430 stainless steel is relatively low compared to other stainless steels, such as 304 or 316. It has a maximum continuous operating temperature of around 1500°F (815°C). At temperatures above this, the steel may begin to undergo oxidation and scaling, leading to reduced corrosion resistance and mechanical properties.
Fabrication
430 stainless steel sheet fabrication refers to the process of shaping and forming a sheet of 430 stainless steel into a desired product or component. This can be done through various methods such as cutting, bending, welding, and finishing.
First, the sheet is typically cut into the desired shape using tools such as shears, laser cutters, or waterjet cutters. This can be done manually or using computer numerical control (CNC) machines for precise and accurate cuts.
Next, the sheet may be bent or formed into the desired shape using a press brake or other bending equipment. This allows for the creation of angles, curves, or other complex shapes.
Welding may also be used to join multiple sheets or components together. This can be done through various welding processes such as TIG (tungsten inert gas) welding or MIG (metal inert gas) welding. Welding allows for the creation of strong and durable joints.
Finally, the fabricated sheet may undergo finishing processes such as polishing, grinding, or coating to improve its appearance or enhance its corrosion resistance.
