AISI 430 Stainless Steel Sheets
AISI 430 stainless steel sheets are a popular choice in the manufacturing industry due to their excellent durability, corrosion resistance, and affordability.
These sheets are made from high-quality stainless steel, which is an alloy of iron with a minimum of 10.5% chromium content. This composition makes the sheets highly resistant to rust and corrosion, ensuring a longer lifespan than other types of steel.
In addition to their durability and resistance to corrosion, AISI 430 stainless steel sheets are also easy to work with. They can be easily fabricated into different shapes and sizes, making them ideal for a variety of applications, including automotive, construction, and kitchen equipment.
With its excellent mechanical properties and resistance to corrosion, AISI 430 stainless steel sheets are also used in the production of marine and industrial products. They are also popular in the food processing industry due to their resistance to staining and pitting from food and beverages.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 430, (UNS S43000) |
Stainlesss Steel 430 Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| SS 430 | 1.4016 | S43000 |
Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | |
| 430 | Min | – | – | – | – | – | 16.0 | – | – |
| max | 0.12 | 1.00 | 1.00 | 0.040 | 0.030 | 18.0 | 0.75 | – |
Mechanical properties:
| Grades | SS 430 |
| Tensile Strength (MPa) min | 450 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 22 |
| Hardness Rockwell B (HR B) max | 89 |
| Hardness Brinell (HB) max | 183 |
Physical properties :
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| SS 430 | – | – | 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | – | – |
| -7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 | |

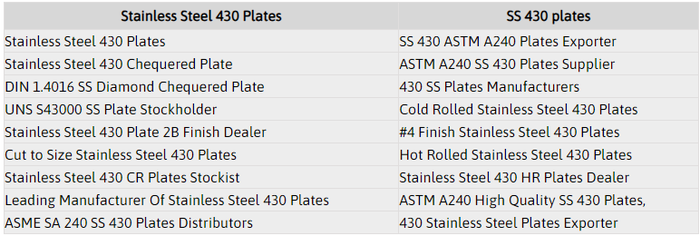

Types Of Stainless Steel 340 Plates
Application Of Stainless Steel 430 Plates Industries
- Automotive Industry
- Kitchenware Industry
- Construction Sector
- Chemical Industry
- Medical Industry

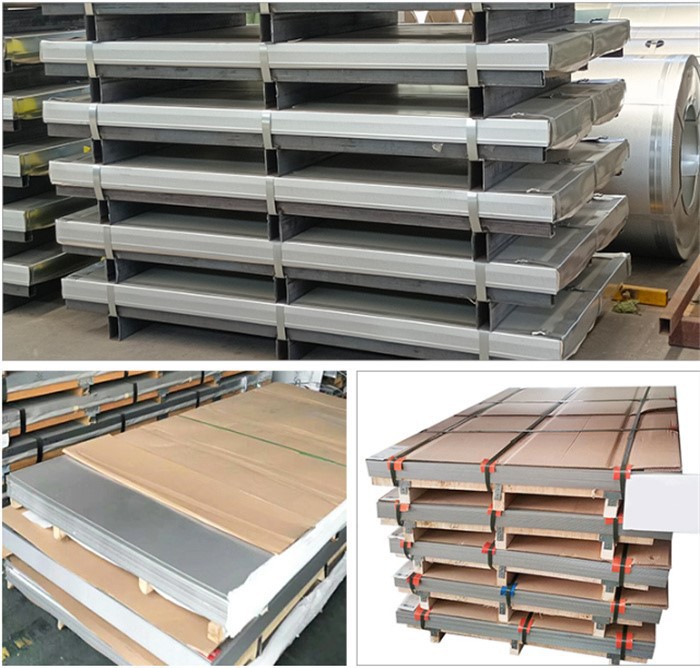

Packing Of Stainless Steel 430 Plates Materials
