ASTM A240 430 Stainless Steel Sheet
ASTM A240 430 stainless steel sheet is a high-quality product that is commonly used in the construction and manufacturing industries. This type of sheet is known for its strong corrosion resistance, good formability, and excellent weldability.
The 430 stainless steel sheet is a popular choice for kitchen equipment, utensils, and appliances, as well as in automotive and aerospace industries. It is a versatile material that can be shaped, cut and formed into a variety of different shapes and sizes to suit specific manufacturing needs.
In addition to its many benefits, ASTM A240 430 stainless steel sheet is a cost-effective option for those looking for a durable and long-lasting material. Its ability to withstand high temperatures, acids, and other corrosive elements makes it ideal for use in a variety of different environments.
ASTM A240 430 Stainless Steel Sheet is a stainless steel sheet with good corrosion resistance, which is often used to make pressure vessels, chemical equipment, food processing equipment, etc. Its main product specifications are as follows:
1. Thickness range: 0.4mm to 50mm;
2. Width range: 1000mm to 2000mm;
3. Length range: 2000mm to 6000mm.
In addition, the ASTM A240 430 Stainless Steel Sheet has many other technical requirements and chemical composition indicators, such as:
1. Chemical composition: C≤0.12, Si≤1.00, Mn≤1.00, P≤0.040, S≤0.030, Cr: 16.0 ~ 18.0, Ni≤0.60;
2. Tensile strength: ≥450 MPa;
3. Yield strength: ≥205 MPa;
4. Elongation: ≥22%.
Chemical Composition(%)
| Composition | Type 430 (wt %) |
430 UF (wt %) |
| Carbon (C) | 0.12 max | 0.12 max. |
| Manganese (Mn) | 1.00 max. | 1.00 max |
| Phosphorus (P) | 0.040 max. | 0.040 max |
| Sulfur (S) | 0.030 max. | 0.030 max. |
| Silicon (Si) | 1.00 max. | 1.00 max |
| Chromium (Cr) | 16.0 – 18.0 | 16.0 – 18.0 |
| Titanium (Ti) | – | 0.5 max. |
| Nickel (Ni) | 0.75 max. | 0.5 max. |
| Iron (Fe) | Balance | Balance |
Equivalent Grades for SS 430 Sheet Plate
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN |
| SS 430 | 1.4016 | S43000 | SUS 430 | 430S17 | X8Cr17 |
Mechanical Properties
| Element | SS 430 |
| Density | 7.75 g/cm³ |
| Melting Point | 1425-1510 °C |
| Tensile Strength | 450 - 600 MPa |
| Yield Strength | psi - 45000, 310-483 MPa |
| Elongation | 20 % |
| Proof Stress | 240 Min MPa |
Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| SS 430 | – | – | 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | – | – |
| -7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 | |

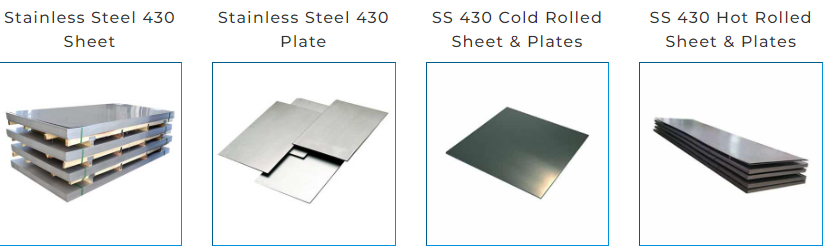

Types Of Stainless Steel TP430 Sheet Plate
Characteristics
Corrosion Resistance
1. Resistance to oxidation:offers excellent resistance to oxidation at high temperatures. This feature makes it ideal in high-temperature settings where other alloys would corrode.
2. Resistance to acidic environments:can withstand acidic environments, making it ideal for chemical and food processing industries.
3. Pitting and crevice corrosion resistance: less susceptible to pitting and crevice corrosion, making it ideal for environments that contain chloride ions.
4. Moisture and humidity resistance:excellent resistance to moisture and humidity, making it ideal for use in marine and coastal environments.
