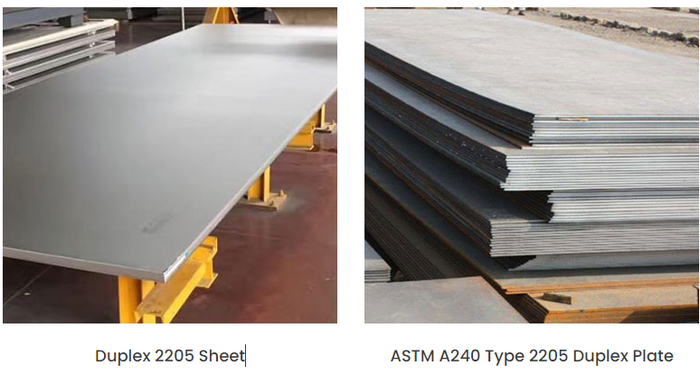

Duplex Steel 2205 Plate
Duplex steel 2205 plate is a premium quality material that is widely used in various industrial applications. With its exceptional properties and characteristics, this steel plate is highly favored and sought after by many businesses and industries across the globe.
One of the biggest advantages of duplex steel 2205 plate is its excellent resistance to corrosion and pitting. This is due to its unique composition of austenitic and ferritic stainless steel, which provides it with superior chemical and mechanical properties. It is also highly durable and can withstand high temperatures, making it an ideal choice for applications that require strength and reliability.
Another benefit of duplex steel 2205 plate is that it is easy to work with and can be fabricated into various shapes and sizes. It can be cut, welded, and formed to meet the specific needs of different industries.
Moreover, duplex steel 2205 plate is not only strong and durable, but it is also aesthetically pleasing. It has a sleek and polished finish that adds to its overall appeal.
Specifications:
- Thickness range: 1mm to 100mm
- Width range: 1000mm to 2500mm
- Length range: 1000mm to 12000mm
Frequently Used 2205 Duplex Stainless Steel Plate Types
Chemical Composition Chart
| Grade | UNS No | C | Cr | Ni | P | Si | S | Mo | N | Mn |
|---|---|---|---|---|---|---|---|---|---|---|
| 31803 | S31803 | < 0.03 | 21.0-23.0 | 4.5-6.5 | 1.03 max | 1 max | 0.02 max | 2.5-3.5 | 0.08-0.2 | < 2.0 |
| 2205 | S32205 | < 0.03 | 22.0-23.0 | 4.5-6.5 | 0.03 max | 1 max | 0.02 max | 3.0-3.5 | 0.14-0.20 | < 2.0 |
Mechanical Characteristics
| Grade | YS (MPa) | UTS (MPa) | % Elongation | Hardness(BHN) |
|---|---|---|---|---|
| 31803 | 450 min. | 620 min. | 25 min. | 293 max. |
| 2205 | 450 min. | 655 min. | 25 min. | 293 max. |
Material Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
|
Duplex 2205 Plate |
1.4462 / 1.4462 |
UNS S31803 / UNS S32205 |
Physical Properties
| Density (Kg / M3) | Modulus of Elasticity (GPa) | Poisson’s Ratio | Thermal Conductivity (W/moC) | Thermal Capacity (I/KgoC) | Electrical Resistivity |
| 7800 | 200 | 0.3 | 15 | 500 | 0.80 |
