Overall, Alloy 2205 is an excellent material that not only has excellent mechanical properties and corrosion resistance, but is also suitable for a variety of extreme environments. As a material with a wide range of uses, it is widely used in different fields and is one of the important materials for future development.

Send Inquiry

Product Introduction

Alloy 2205 is an extremely corrosion-resistant material with excellent mechanical properties and high heat resistance. It has a wide range of uses, including manufacturing chemical equipment, offshore platforms, Bridges and building structures.

As a duplex stainless steel, Alloy 2205 offers greater strength and corrosion resistance than traditional stainless steel. Its corrosion resistance is excellent in a variety of chemical environments, especially in chloride environments. This makes it particularly suitable for the Marine and chemical industries, where saltwater and other corrosive substances are present.

In addition, Alloy 2205 has excellent biphase characteristics, excellent pressure resistance and fatigue resistance, and can withstand large pressure and weight loads. Therefore, it is widely used in buildings and bridge structures. In addition, its high temperature performance is also very outstanding, high temperature and low temperature resistance are very good, very suitable for high temperature equipment and low temperature control systems.

Product Specification

Chemical composition: chromium (22% 23%), nickel (4.5% 6.5%), molybdenum (3% 3.5%), copper (0.1% 0.8%), nitrogen (0.08% 0.2%), iron (allowance).
Thickness: from 0.1875 inches to 3 inches.
Width: From 48 "to 120".
Length: from 96 "to 240".
Surface: 2B, 2D, HL, BA, NO.1, etc.
Trademarks: Alloy 2205, UNS S32205, W.N.R.1.4462, SAF 2205, etc.

Standard Size Plates

Thickness (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)
5	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
6	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
8	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
10	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
12	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
15	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
16	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
20	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
25	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
30	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
35	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
40	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
45	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
50	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
60	4000 x 2000
70	4000 x 2000
80	4000 x 2000
90	4000 x 2000
100	4000 x 2000

Large Area Plate

Thickness (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)
5	12000 x 2000	12000 x 2500	12000 x 3000
6	12000 x 2000	12000 x 2500	12000 x 3000
8	12000 x 2000	12000 x 2500	12000 x 3000
10	12000 x 2000	12000 x 2500	12000 x 3000
12.5	12000 x 2000	12000 x 2500	12000 x 3000
15	12000 x 2000	12000 x 2500	12000 x 3000
16	12000 x 2000	12000 x 2500	12000 x 3000
20	12000 x 2000	12000 x 2500	12000 x 3000
25	12000 x 2000	12000 x 2500	12000 x 3000
30	12000 x 2000	12000 x 2500	12000 x 3000
35	12000 x 2000	12000 x 2500	12000 x 3000
40	12000 x 2000	12000 x 2500	12000 x 3000
45	12000 x 2000	12000 x 2500	12000 x 3000
50	12000 x 2000	12000 x 2500	12000 x 3000

Properties: what makes duplex stainless steel special?

Corrosion Resistance: Duplex stainless steel exhibits excellent corrosion resistance, particularly in aggressive environments such as seawater, acidic and chloride-containing solutions. This property is primarily due to its high chromium (Cr) and molybdenum (Mo) content.
Strength and Toughness: Duplex stainless steel possesses high strength and toughness, making it suitable for applications that require good mechanical properties. It has a higher yield strength compared to austenitic stainless steel, which allows for thinner sections and reduced weight without compromising structural integrity.
Stress Corrosion Cracking Resistance: Duplex stainless steel has superior resistance to stress corrosion cracking, which is a common failure mode in many corrosive environments. This property is particularly beneficial in industries such as oil and gas, chemical processing, and marine applications.
High Temperature Resistance: Duplex stainless steel retains its mechanical properties and corrosion resistance at elevated temperatures, making it suitable for applications in high-temperature environments. It has a higher thermal expansion coefficient than austenitic stainless steel, reducing the risk of thermal fatigue.
Cost-Effectiveness: Duplex stainless steel offers a cost-effective solution compared to other high-performance alloys. Its superior strength and corrosion resistance allow for longer service life, reduced maintenance, and lower lifecycle costs.
Weldability: Duplex stainless steel exhibits good weldability, enabling ease of fabrication and joining. It can be welded using various techniques without significant loss of properties, making it suitable for complex structures and components.

Forms of Duplex 2205 Available

Duplex 2205 Plate: This is the most common form of Duplex 2205 and is used in various industrial applications, particularly in oil and gas, chemical processing, and marine environments.

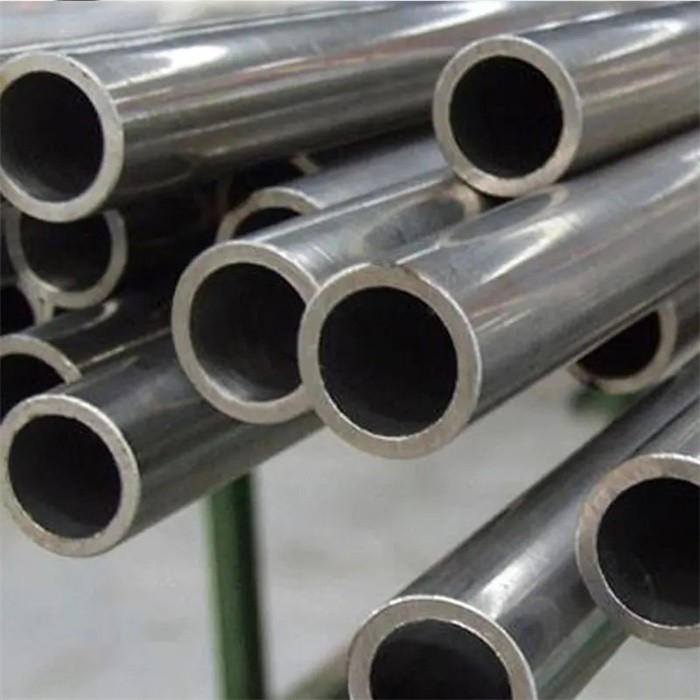

Duplex 2205 Pipe: Duplex 2205 pipes are commonly used in heat exchangers, chemical processing, and other high-stress environments. The high strength and corrosion resistance properties of this alloy make it an ideal choice for such applications.
Duplex 2205 Tube: Duplex 2205 tubes are used in a variety of applications, including heat exchangers, chemical processing, and transport of corrosive fluids. The tubes are available in different sizes and thicknesses to meet varying application requirements.
Duplex 2205 Bar: Duplex 2205 bars are widely used in the oil and gas industry, chemical processing, and marine environments. The bars are available in different shapes and sizes to meet different application needs.
Duplex 2205 Fittings: The fittings are used in piping systems in chemical processing, oil and gas industry, and marine environments. The fittings are available in different forms, such as couplings, elbows, and tees.
