Abrasion Resistant Nm450 Wear Resistant Steel Plate
Yield strength Re (MPa) : 1000
Tensile strength Rm (MPa) : 1250
Elongation A5:10
Test temperature: 20 (20F)
Impact power Charpy-V longitudinal (J) : 45
Hardness: HBW420-480
Abrasion Resistant Nm450 Wear Resistant Steel Plate
Features:
1. High wear resistance: Brinell hardness 450HWC Rockwell hardness 60-68HRC wear resistance is 15-20 times of ordinary steel, 5-10 times of low alloy, 2-5 times of high cadmium cast iron.
2. Good impact performance: applied to vibration, impact, strong operation of wear-resistant materials.
3. Good heat resistance: it can be used under the conditions of 1200 degrees.
4. Good connection performance: can be welded, can be bolted.
5. Thickness selection: 3mm-110mm, according to different uses, choose different thickness.
6. Good processing performance: It can be processed into specifications, cold bay forming, welding, bending, etc
|
Name |
Hardox steel plate |
|||
|
Standard: |
GB |
ASTM |
SSAB OXELOSUND |
SSAB OXELOSUND |
|
GRADE: |
NM360,NM400, NM450,NM500, NM550,NM600 |
XAR400,XAR450, XAR500,XAR550 |
HARDOX400, HARDOX450, HARDOX500, HARDOX550, HARDOX600 |
NK-EH360,JFE-EH400, JFE-EH450,JFE-EH500 |
|
Grades |
Chemical Composition(wt%) |
|||||||
|
C |
Si |
Mn |
P |
S |
Al |
Cr+Ni+Mo |
Nb+V+Ti |
|
|
NM450 |
0.10-0.40 |
0.20-0.40 |
1.0-2.0 |
≤0.015 |
≤0.003 |
≥0.020 |
<1.2 |
|
Products Applications
Packing & Shipping

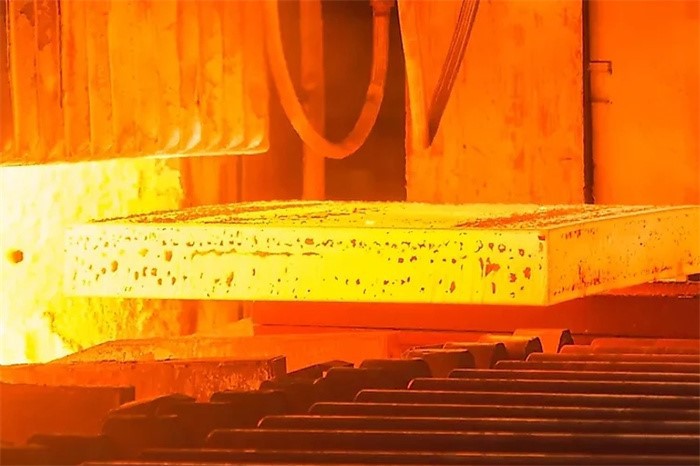

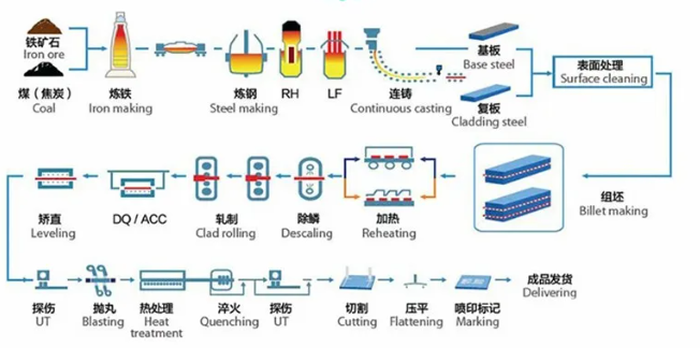

Productive Process
