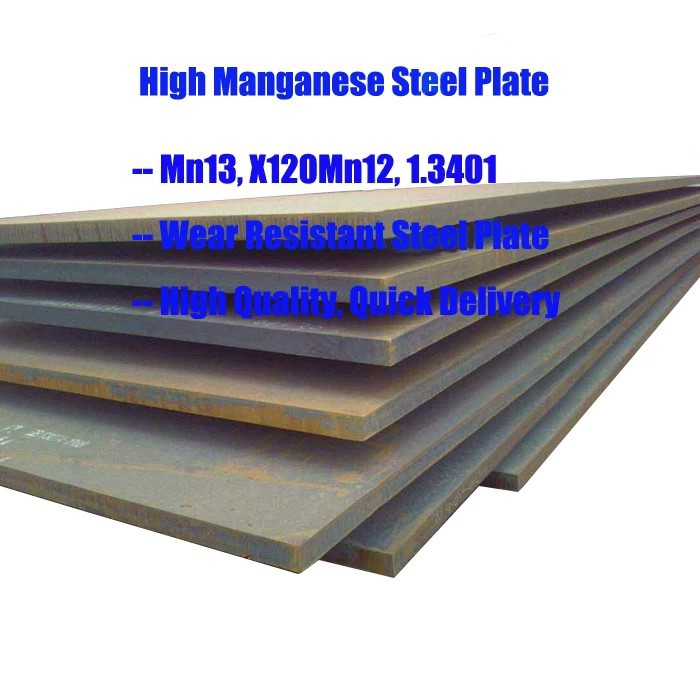

MN13 Non Magnetic Wear Resistant Plate
MN13 Non Magnetic Wear Resistant Plate
MN13 Non Magnetic Wear Resistant Plate
MN13 Non Magnetic Wear Resistant Plate

MN13 Non Magnetic Wear Resistant Plate

Brand: Mn13
C: 0.90-1.20
Si: 0.30-0.80
Mn: 11.00-14.00
P: ≤0.035

Send Inquiry

Product Introduction

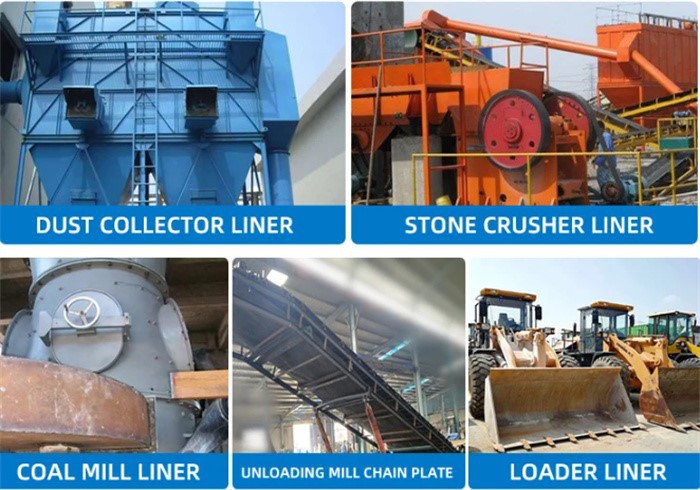

MN13 is a type of wear-resistant steel plate that is known for its high strength, hardness, toughness and abrasion resistance. It is often used in the mining, construction, and earth-moving industries, as well as in applications that require resistance to wear and impact.

One of the unique features of MN13 wear-resistant steel is that it is non-magnetic, which makes it ideal for applications where magnetic interference is a concern. This type of steel is composed of high manganese steel, which contains up to 12% manganese content.

The high manganese content in MN13 provides excellent wear resistance and toughness, while also promoting work hardening. This means that the steel becomes even harder and more wear-resistant over time, increasing its lifespan and durability.

The following are the specifications of the product:

Chemical composition: C≤1.3, Mn≥11.0, Si≤0.80, Cr≤2.00, P≤0.060, S≤0.060.
Mechanical properties: tensile strength ≥1200MPa, yield strength ≥900MPa, elongation ≥12%.
Surface hardness: HB≥220.
Impact toughness: ≥60J at -40℃.

Product Name	Wear Resistant Steel Plate
Standard	AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Steel Grade	NM360,NM400, NM450,NM500, NM550,NM600,Mn13; AR400, AR450, AR500 NK-EH360, JFE-EH400
Thickness tolerance	±0.01mm
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV, SGS.
Surface Structure	Clean, finishing,blasting and painting according to customer requirement
Certificate	Approved by SGS,BV,ISO
Export packing	Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Export market	Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America,etc
