NM Plate
NM plate is a wear-resistant steel plate, which is widely used in industries such as mining, construction, material handling and heavy machinery manufacturing.
"NM" comes from the first letter of the Chinese word for "NaiMo". The numbers behind it, such as NM450 and NM400, usually represent the Brinell hardness (HB) of the steel plate. The larger the number, the higher the hardness of the steel plate and the stronger the wear resistance. For example, NM450 means that the hardness of the steel plate is about 450 HB, while the hardness of NM400 is about 400 HB. The higher the hardness, the stronger the wear resistance of the steel plate. Common wear-resistant steel plates include NM360, NM400, NM450, NM500, NM550, NM600, etc.
Product specification
|
Product Name |
NM Plate |
|
Grade |
China: NM360,NM400,NM450,NM500 etc |
|
Certificate |
MTC SGS JIS |
|
Thickness |
3-200mm or as required |
|
Width |
1500-2000mm or as required |
|
Length |
6000-12000mm or as required |
|
Delivery time |
Within 7-15 workdays after receiving deposit or L/C |
|
Export packing |
Steel strips package or seaworthy packing |
|
Capacity |
300,000 tons/year |
|
Payment |
T/T L/C DP |
- Inspection: Chemical analysis, Metallographic, Mechnical analysis, Ultrasonic testing, Impact testing, Hardness testing, Surface quality and Dimension report.
Abrasion Resistant Steel Plate Chemical Composition:
| Brand | C | Si | Mn | P | S | Cr | Mo | Ni | B | CEV |
| NM360 | ≤0.17 | ≤0.50 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.70 | ≤0.40 | ≤0.50 | ≤0.005 | |
| NM400 | ≤0.24 | ≤0.50 | ≤1.6 | ≤0.025 | ≤0.015 | 0.4~0.8 | 0.2~0.5 | 0.2~0.5 | ≤0.005 | |
| NM450 | ≤0.26 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤1.50 | ≤0.05 | ≤1.0 | ≤0.004 | |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.65 | ≤1.0 | Bt: 0.005-0.06 | 0.65 |
Abrasion Resistant Steel Plate Mechanical Properties:
| Brand | Thickness mm | Tensile Test MPa | Hardness | |||||||
| YS Rel MPa | TS Rm MPa | Elongation % | ||||||||
| NM360 | 10-50 | ≥620 | 725-900 | ≥16 | 320-400 | |||||
| NM400 | 10-50 | ≥620 | 725-900 | ≥16 | 380-460 | |||||
| NM450 | 10-50 | 1250-1370 | 1330-1600 | ≥20 | 410-490 | |||||
| NM500 | 10-50 | --- | ---- | ≥24 | 480-525 | |||||
Machining Center
In addition to the general requirements of CNC flame cutting and CNC plasma cutting mode, We can provide CNC waterjet cutting,CNC laser cutting or Wire cutting to meet the personalized design & application requirements and to ensure the "zero" heat affected zone on precision parts of steel plate.

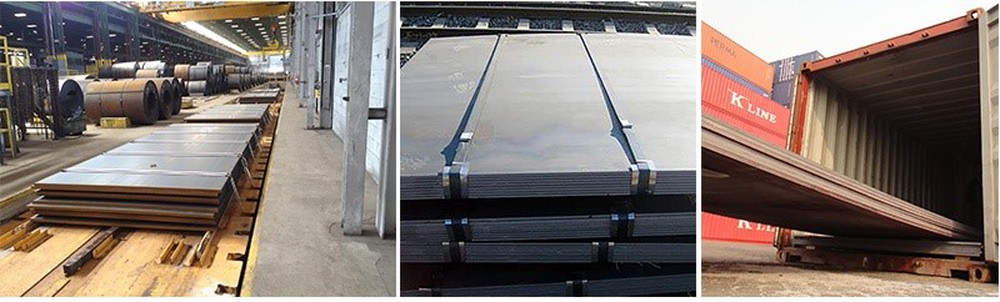

Product Packing
Packing Details : Bundle with steel strip
Delivery Details : Use trays to facilitate loading and unloading
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
FAQ
1.Q: Why choose us?
2.Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
3.Q: How is your Payment Term?
A: Our usual payment methods are T/T, L/C, D/A, D/P, Western Union, Money Gram, payment methods can be negotiated and customized with customers.
4.Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
5.Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
6.Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
7.Q: Can you provide sample?
A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
8.Q:How can I get a quotation from you?
A:You can leave us message, and we will reply every message in time. Or we may talk on line by trade manager. And you can also find our contact information on contact page.
