NM360wear-resistant steel is widely used in engineering, mining, construction and agriculture machinery products under extremely harsh working conditions with the requirement of high strength and high wear resistance. such as
bulldozers
loaders
excavators
dump trucks
various mining machinery, etc.

Send Inquiry

Product Introduction

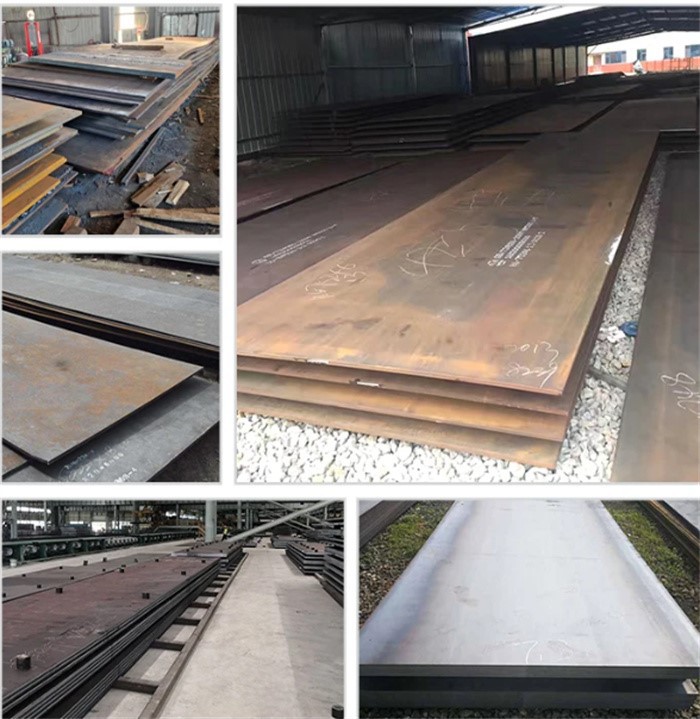

NM360 abrasion wear resistant steel plate is a high-strength and high-hardness wear-resistant steel plate that has a nominal hardness of 360 HBW. It is designed to provide superior wear resistance and impact resistance in high-abrasion applications, such as mining, construction, and material handling equipment.

The thickness of NM360 abrasion wear resistant steel plate can range from 6mm to 150mm. The thickness you choose will depend on the specific application you have in mind. Thicker plates are typically used in applications where the equipment is subjected to heavy wear and impact, while thinner plates may be more suitable for lighter-duty applications.

Regardless of the thickness you choose, you can expect NM360 abrasion wear resistant steel plate to provide excellent durability, toughness, and wear resistance in demanding environments. Its high strength and hardness make it ideal for use in applications where equipment is exposed to abrasive materials, such as rock, sand, and gravel. Additionally, its toughness and impact resistance help to prevent cracking and deformation under heavy loads, ensuring reliable performance over time.

Composición química:

Grado	C	Si	Mn	P	S	Cr	Mo	Cu	Ni	B
XAR400	0,20	0,80	1,50	0.025	0.010	1,00	0,50	.	.	0.005
XAR450	0,22	0,80	1,50	0.025	0.012	1,30	0,50	0,30	.	0.005
XAR500	0,28	0,80	1,50	0.025	0.010	1,00	0,50	.	.	0.005
XAR600	0,40	0,80	1,50	0.025	0.010	1,50	0,50	.	1,50	0.005

Las propiedades mecánicas:

Grado	I.y.s (MPa)	T.S(MPa)	Elongación	Dureza Brinell
XAR400	1150	1300	≥ 12	360-440
XAR450	1200	1350	≥ 10	410-490
XAR500	1500	1600	≥ 9	450-530
XAR600	.	.	.	≥ 550

NM360 Abrasion Wear Resistant Steel Plate 6mm-150mm

Product application

APPLICATONS
Mining	Chutes, hoppers, liners for truck beds, dozer blades, shovel buckets, dragline buckets, excavators
Cement	Separator guide vanes, discharge cones for clinker storage bins, chutes for sintering ore conveying, outlet ducts for clinker grinding mills, receiving hoppers
Dredging	Dredging pipes and pumps, suction pipelines, pump discharges
Steel	Dredging pipes and pumps, suction pipelines, pump discharges
Power	Coal handling chutes, coal feeder liners, crusher screen plates, classifier cones, journal liners, silo bunkers
