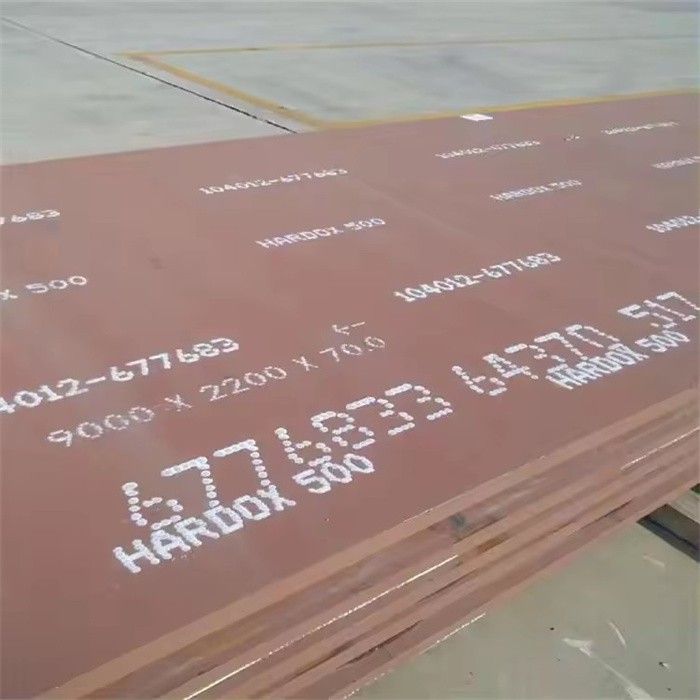

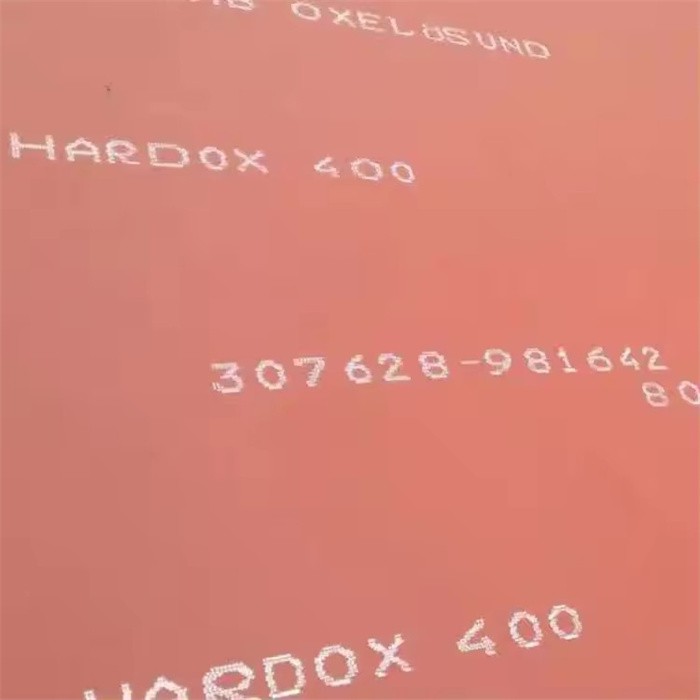

NM500 HB500 Domex400 Wear Resistance Steel Plate
NM500 HB500 Domex400 Wear Resistance Steel Plate
The relevant standard in China is GBT 24186-2009 high-strength wear-resistant steel plate for construction machinery.
The hardness range of NM400 is 370-430HB, and the hardness range of NM500 wear-resistant steel plate is greater than or equal to 470 Brinell hardness. Of course, if the portable hardness tester is tested, the hardness value will be low, according to the standard is sampled (considering the heat affected zone), the surface is cold processed 1-2mm, and the desktop hardness tester test will be close to the test value of the steel mill.
Material Grade:
NM360 NM400 NM450 NM500 NR360 NR400
AR400 AR450 AR500 AR550
XAR400 XAR450 XAR500 XAR600
QUARD400 QUARD450 QUARD500
FORA400 FORA500
RAEX400 RAEX450 RAEX500
JFE-EH360 JFE-EH400 JFE-EH500
Typical Steel Grades/Specifications
| Grades | Specifications | Size Range(width:mm) | Delivery Condition |
| NM360 | GB/T 24186 Agreement |
≤120 | Q,Q+T |
| NM400 | ≤120 | ||
| NM450 | ≤120 | ||
| NM500 | ≤80 | ||
| XCHD400 | ≤80 | ||
| XCHD450 | ≤50 | ||
| XCHD500 | ≤50 |
Chemical Composition:
| Grades | Chemical Composition(wt%) | |||||||
| C | Si | Mn | P | S | Al | Cr+Ni+Mo | Nb+V+Ti | |
| NM400 | 0.10-0.30 | 0.20-0.40 | 1.0-2.0 | ≤0.015 | ≤0.003 | ≥0.020 | <0.9 | Trade Amount |
| NM500 | 0.10-0.40 | 0.20-0.45 | 1.0-2.0 | ≤0.015 | ≤0.003 | ≥0.020 | <1.5 | |
Mechanical Properties
| Grades | Size | Rel/ReH/Rp0.2,MPa | Rm,MPa | A50,% | AKV,℃ | AKV,J | HBW | ||
| NM400 | 100 | 1233 | 1377 | 15 | -20 | 35 | 37 | 42 | 415 |
| NM500 | 50 | 1608 | 1706 | 10.5 | -20 | 43 | 50 | 45 | 485 |

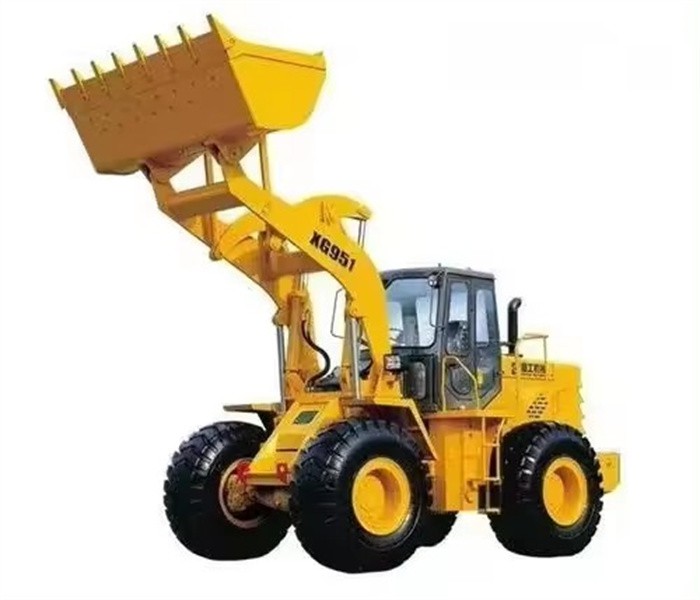

Applications

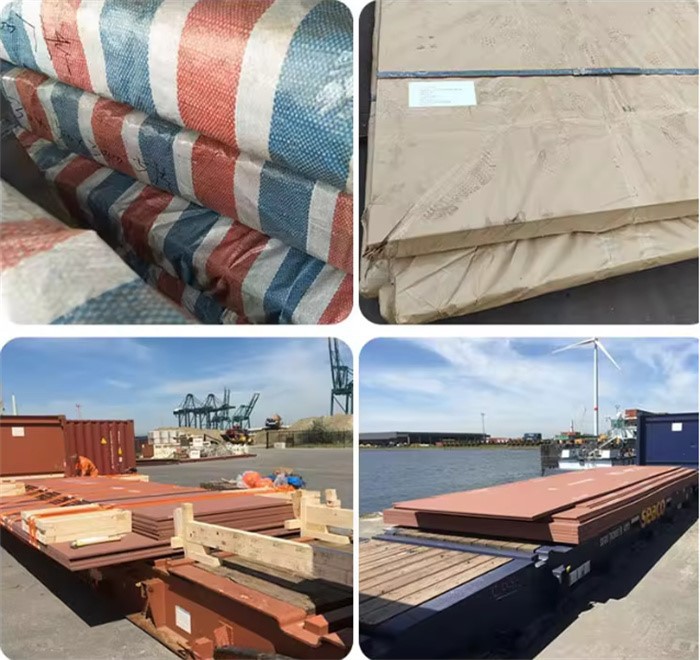

Packaging&Shipping
