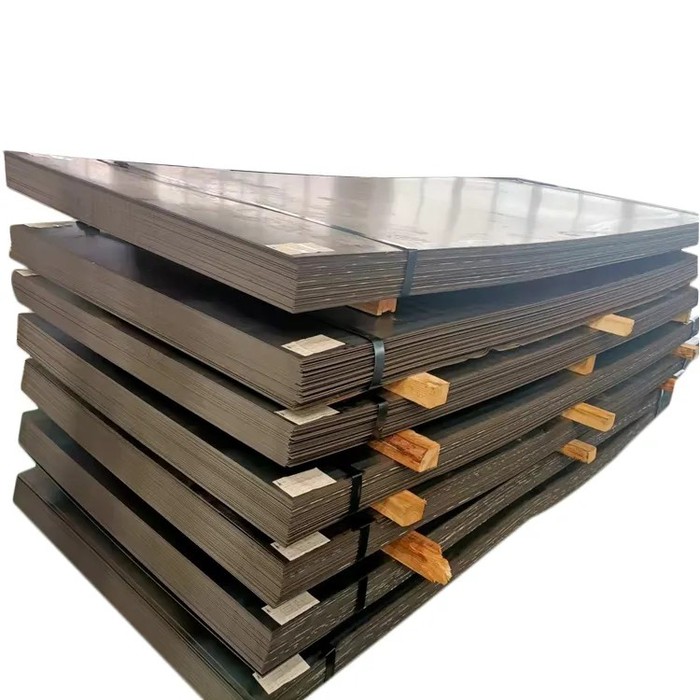

DIN EN 10025-6 S890QL1 Non- Alloy Structural Steel Plate
DIN EN 10025-6 S890QL1 Non-Alloy Structural Steel Plate is a high-strength steel that is widely used in various industrial applications. Its superior properties make it suitable for use in heavy-duty machinery and equipment, construction, mining, and other sectors.
One of its main advantages is its excellent resistance to abrasion, impact, and wear, making it ideal for use in harsh operating conditions. Moreover, S890QL1 is a low-carbon steel, meaning it is environmentally friendly and has a low carbon footprint.
In addition to its great mechanical properties, this steel plate also offers exceptional welding and machining properties. This makes it easy to work with, making it perfect for use in highly specialized applications.
1. High strength: S890QL1 steel has a minimum yield strength of 890 MPa, which makes it one of the strongest steels available.
2. Good weldability: Despite its high strength, S890QL1 is still relatively easy to weld, which makes it a popular choice for construction projects.
3. High impact resistance: S890QL1 steel is also highly resistant to impact, making it ideal for use in structures that are subjected to heavy loads or dynamic stresses.
4. Good formability: S890QL1 can be easily shaped and formed without losing its strength or durability.
5. High toughness: S890QL1 is highly resistant to fracture, making it an ideal choice for structures that need to withstand harsh environments or extreme conditions.
S890QL Structural Steel Tube Specifications
| Dimensions | ASTM, ASME and API |
|---|---|
| Size | 4 to 219 millimeter W. T.: 0.5 to 20 millimeter Suppliers |
| Speciality in | Large Diameter Size |
| Length | Within 13500 millimeter |
| Supplier of S890 QL Structural Steel Tube in Types |
Welded / Seamless / Fabricated / ERW |
| Form | Round, Square, Rectangular, Hydraulic. |
| Length | In Single and Double Random & Cut to Length. |
| End | Plain End, Threaded, Beveled End |
S890QL Grade Designation
S = Structural Steel
890 = minimum yield strength (MPa)
Q = Quenching & Tempering
L1= Lower notch toughness testing temperatures to -60ºC
Chemical Composition of S890QL Steel Tube
One of the prominent manufacturer and supplier of EN 10025-6 S890ql Material at market price.
| C | Si | B | Mn | P | S | Cu | Cr | Mo |
| 0.20 | 0.80 | 0.005 | 1.70 | 0.020 | 0.010 | 0.50 | 1.50 | 0.70 |
| N | Nb* | Zr* | Ni | Ti* | V* | |||
| 0.015 | 0.06 | 0.15 | 2.0 | 0.05 | 0.12 |
Mechanical Properties of S890QL High Yield Structural Steel Tube
|
Plate Thickness mm |
Tensile Strength Rm (MPa) |
Impact Strength J, Minimum |
Yield Strength ReH (MPa) |
Elongation A5 % minimum |
|
| 3 to 50 | 940 - 1100 | 30 @ -40º C | 890 | 11 | |
| > 50 to 100 | 880 - 1100 | 30 @ -40º C | 830 | 11 | |
| We are Supplier of varieties of S890 Steel Tube Sizes and Shapes | |||||
S890QL Structural Steel Tube V Notch Impact Testing
| Grade | Sample Orientation | @ 0°C | @-40°C | @-20°C | @-60°C |
| S890QL | Traverse | 35 J | 27 J | 30 J | –– |
| Longitudinal | 50 J | 30 J | 40 J | –– |
Physical Behaviour of S890QL Carbon Steel Rectangular Tube
Compare price with other S890 QL Structural Steel Tube
| Temp. (°C) |
Specific electrical resistivity (Ω mm²/m) |
Mean coefficient of thermal expansion 10-6/(°C) b/w 20(°C) and | Density (kg/dm³) |
Modulus of elasticity (GPa) |
Specific thermal capacity (J/kg·°C) |
Poisson’s coefficient, ν | Thermal conductivity (W/m·°C) |
|---|---|---|---|---|---|---|---|
| 21 | 0.21 | - | - | - | |||
| 763 | - | - | 453 | 134 | 41.3 | ||
| 922 | 43 | 121 | - | 412 | 12.2 |
