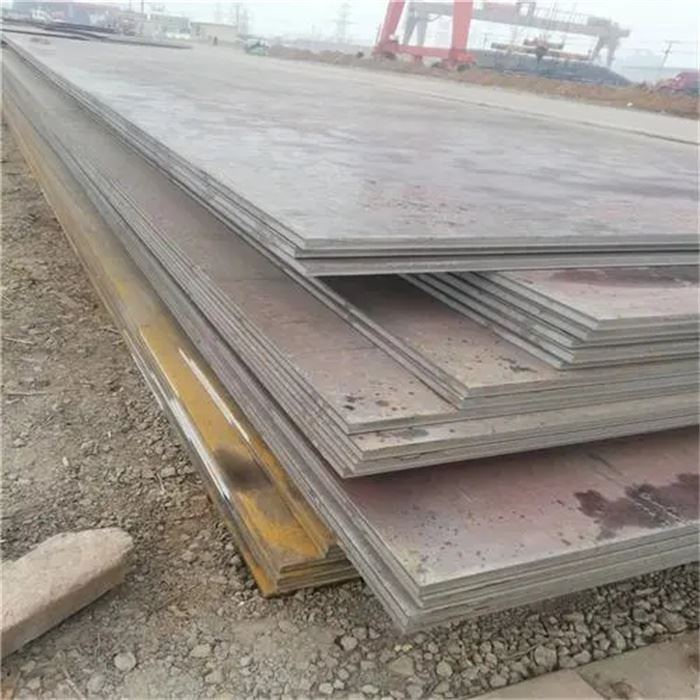

EN 10025-6 Grade S460QL Steel Plate And S460QL1 Steel Plate
En 10025-6 grade S460QL steel plate and S460QL1 steel plate are excellent choices for structural applications that require high strength, durability and long-lasting performance. These grades of steel have been specifically designed to withstand harsh environmental conditions, making them ideal for use in industries such as construction, mining and transportation.
The unique properties of En 10025-6 grade S460QL steel plate and S460QL1 steel plate make them stand out among other grades of steel. They have a high yield strength, which means that they can withstand heavy loads and stress without deforming or breaking. This makes them ideal for use in large structures such as bridges, buildings and offshore platforms.
In addition, these grades of steel are also resistant to wear and tear, which means that they can retain their strength even after years of use. They are also highly ductile, which means that they can be molded and shaped into different forms without losing their strength. This makes them easy to work with and ideal for use in a variety of applications.
Another advantage of En 10025-6 grade S460QL steel plate and S460QL1 steel plate is their low weight-to-strength ratio. This makes them an ideal choice for use in applications where weight is a critical factor, such as in the aerospace and automotive industries.
EN 10025-6 high strength steel plates: S460Q, S460QL, S460QL1 chemical composition of heat analysis:
| Grade | C | Si | Mn | P | S | N | B | Cr | Cu | Mo | Nb | Ni | Ti | V | Zr |
| S460Q | 0.20 | 0.80 | 1.70 | 0.025 | 0.015 | 0.015 | 0.005 | 1.50 | 0.50 | 0.70 | 0.06 | 4.0 | 0.05 | 0.12 | 0.15 |
| S460QL, S460QL1 | 0.020 | 0.010 |
EN 10025-6 high strength steel plates: S460Q, S460QL, S460QL1 chemical composition of product analysis:
| Grade | C | Si | Mn | P | S | N | B | Cr | Cu | Mo | Nb | Ni | Ti | V | Zr |
| S460Q | 0.22 | 0.86 | 1.8 | 0.03 | 0.017 | 0.016 | 0.006 | 1.6 | 0.55 | 0.74 | 0.07 | 4.1 | 0.07 | 0.14 | 0.17 |
| S460QL, S460QL1 | 0.025 | 0.012 |
EN 10025-6 high strength steel plates: S460Q, S460QL, S460QL1 mechanical properties - tensile test properties at room temperature:
| EN 10025-6 | Steel number |
Min. Yield Strength (MPa) | Tensile Strength (MPa) | Min. Elongation |
||||||
| ≥3 ≤50 | >50 ≤100 | >100 ≤125 | >125 ≤200 | ≥3 ≤50 | >50 ≤100 | >100 ≤125 | >125 ≤200 | |||
| S460Q | 1.8908 | 460 | 440 | 400 | 550 to 720 | 500 to 670 | 17 | |||
| S460QL | 1.8906 | |||||||||
| S460QL1 | 1.8916 | |||||||||
EN 10025-6 high strength steel plates: S460Q, S460QL, S460QL1 mechanical properties - impact energy on test pieces:
| EN 10025-6 | Min. impact energy (J) at test temperature (℃) | |||||||
| Grade | 0 | -20 | -40 | -60 | ||||
| Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse | |
| S460Q | 40 | 30 | 30 | 27 | - | - | - | - |
| S460QL | 50 | 35 | 40 | 30 | 30 | 27 | - | - |
| S460QL1 | 60 | 40 | 50 | 35 | 40 | |||
