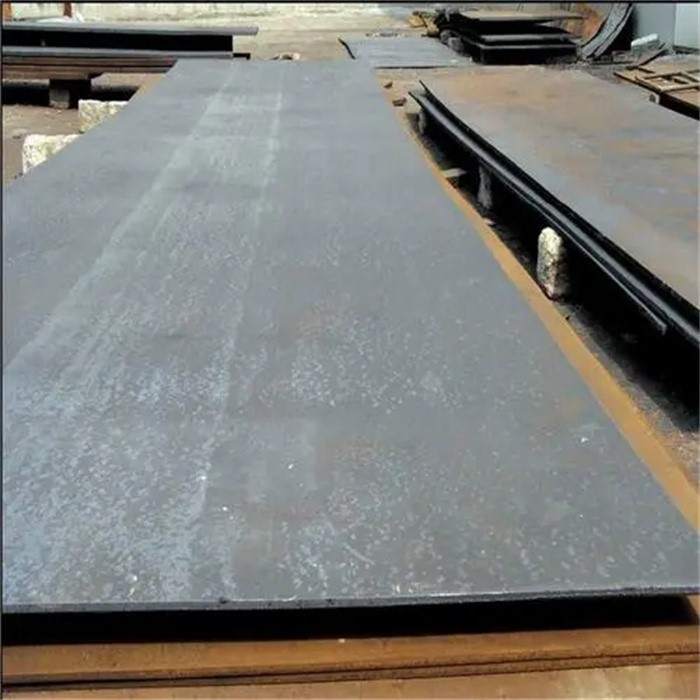

EN10025-6 S460QL Hot Rolled Structural Steel Plates
EN10025-6 S460QL hot rolled structural steel plates are an essential material for construction projects that require high strength and durability. These plates are made using advanced technology and quality materials to ensure they meet the highest industry standards.
The S460QL hot rolled structural steel plates are designed to withstand harsh environmental conditions and extreme working temperatures. They offer excellent resistance to corrosion, abrasion, and impact, making them ideal for use in heavy-duty applications such as building bridges, tunnels, and skyscrapers.
The plates are also used in manufacturing heavy machinery, equipment, and vehicles due to their high tensile strength. They exhibit outstanding weldability and formability, which makes them easy to work with and shape according to specific project requirements.
Moreover, S460QL hot rolled structural steel plates come with excellent mechanical properties such as high toughness, low weight, and excellent fatigue resistance. This combination of properties ensures that these plates can withstand heavy loads and stresses over an extended period.
Steel Name:s460q steel,s460ql steel plate,s460ql1 high strength steel plate
Main steel grades: S460Q,S890Q,S690Q,S690QL,S960QL,A514 Grade F,A514 Grade P,A517 Grade F,A514 Grade A,A517 Grade P
Steel standard:EN 10025-6,ASTM,ASME,GB,WYJ
Main application:High strength low alloy steel plates are mainly made mechanical device and other structural
elements and so on drilling machine, power shovel, electricity drive wheel counter- mine trolley, mineral product
automobile, excavator, car loader.
Rolling range: Thickness*Width*Length 6-450mm*1500-4200mm*5000-18000mm
Surface Treatment: Hot rolled and Coated
Supply Ability: 10000 Tons per month
Additional service:Shot blasting and painting,Cutting and welding as per user's request.
| Quality | Testing direction | Material-No. | Yield point ReL min. (MPa) ≤ 16 mm |
Yield point ReL min. (MPa) 16 ≤ 40 mm |
Tensile strength Rm (MPA) 3 ≤ 50 mm |
Tensile strength Rm (MPA) 50 ≤ 100 mm |
Elongation A5 (in %) min. | Impact value Temp. °C | Impact value KV / J |
|---|---|---|---|---|---|---|---|---|---|
| S460Q | Q | 1.8908 | 460 | 440 | 550 - 720 | 550 - 720 | 17 | 0 | 40 |
| S460QL | Q | 1.8906 | 460 | 440 | 550 - 720 | 550 - 720 | 17 | 0 | 50 |
| S460QL1 | Q | 1.8916 | 460 | 440 | 550 - 720 | 550 - 720 | 17 | 0 | 60 |
| S500Q | Q | 1.8924 | 500 | 500 | 550 - 720 | 550 - 720 | 17 | 0 | 40 |
| S500QL | Q | 1.8909 | 500 | 500 | 550 - 720 | 550 - 720 | 17 | 0 | 50 |
| S500QL1 | Q | 1.8984 | 500 | 500 | 550 - 720 | 550 - 720 | 17 | 0 | 60 |
| S550Q | Q | 1.8907 | 550 | 530 | 640 - 820 | 640 - 820 | 16 | 0 | 40 |
| S550QL | Q | 1.8926 | 550 | 530 | 640 - 820 | 640 - 820 | 16 | 0 | 50 |
| S550QL1 | Q | 1.8986 | 550 | 530 | 640 - 820 | 640 - 820 | 16 | 0 | 60 |
| S620Q | Q | 1.8914 | 620 | 580 | 700 - 890 | 700 - 890 | 15 | 0 | 40 |
| S620QL | Q | 1.8927 | 620 | 580 | 700 - 890 | 700 - 890 | 15 | 0 | 50 |
| S620QL1 | Q | 1.8988 | 620 | 580 | 700 - 890 | 700 - 890 | 15 | 0 | 60 |
| S690Q | Q | 1.8931 | 690 | 690 | 770 - 940 | 760 - 930 | 14 | 0 | 40 |
| S690QL | Q | 1.8928 | 690 | 690 | 770 - 940 | 760 - 930 | 14 | 0 | 50 |
| S690QL1 | Q | 1.8988 | 690 | 690 | 770 - 940 | 760 - 930 | 14 | 0 | 60 |
| S890Q | Q | 1.8940 | 890 | 860 | 940 - 1100 | 880 - 1100 | 11 | 0 | 40 |
| S890QL | Q | 1.8983 | 890 | 860 | 940 - 1100 | 880 - 1100 | 11 | 0 | 50 |
| S890QL1 | Q | 1.8925 | 890 | 860 | 940 - 1100 | 880 - 1100 | 11 | 0 | 60 |
| S960Q | Q | 1.8941 | 960 | 860 | 980 - 1150 | 10 | 0 | 40 | |
| S960QL | Q | 1.8933 | 960 | 860 | 980 - 1150 | 10 | 0 | 50 | |
| S960QL1 | Q | 1.8934 | 960 | 860 | 980 - 1150 | 10 | 0 |
