50crv4 spring steel is an excellent choice for any application that requires a high degree of reliability, durability, and toughness. Whether you are looking to manufacture springs, blades, or other metal components, this material is sure to deliver exceptional performance and long-lasting results. So if you're looking for a top-quality spring steel material, look no further than 50crv4 spring steel.

Send Inquiry

Product Introduction

50crv4 spring steel is a highly versatile and durable material that is commonly used in a variety of applications. Known for its excellent mechanical properties and high resistance to deformation, 50crv4 spring steel is a popular choice for manufacturing springs, blades, and other metal components.

One of the key advantages of this material is its high hardness and superb elasticity, which allows it to compress and expand without breaking or undergoing significant deformations. This makes it ideal for use in critical applications where reliability and durability are of utmost importance.

In addition to being an excellent choice for spring manufacturing, 50crv4 steel is also widely used in the manufacturing of knives, cutting tools, and other industrial equipment. Thanks to its exceptional toughness and fatigue resistance, this material is able to withstand even the toughest industrial environments and perform reliably for extended periods of time.

Chemical Composition of 50CrV4 Grade (As Per IS:2507)

CARBON 0.45 - 0.55 %
MANGANESE 0.70 - 1.10 %
SILICON 0.10 - 0.35 %
SULPHUR 0.03 % MAX
PHOSPHOROUS 0.035 % MAX
CHROMIUM 0.90 - 1.20 %
VANADIUM 0.10 - 0.20 %

Specifications HARDNESS Generally material in this grade is stocked in fully annealed form with a hardness of 200 - 220 HV / VPN. Also as per customer's request different hardness range such as half-hard or full hard can be achieved.

THICKNESS RANGE:-0.50 MM up to 4.00 MM
WIDTH RANGE:- 50.00 MM up to 400 MM
EDGE CONDITION:- Mill Edge, Sheared Edge
COIL FORM:- Material can be supplied in coil form
SHEET FORM:- Material can be supplied in sheet form as well

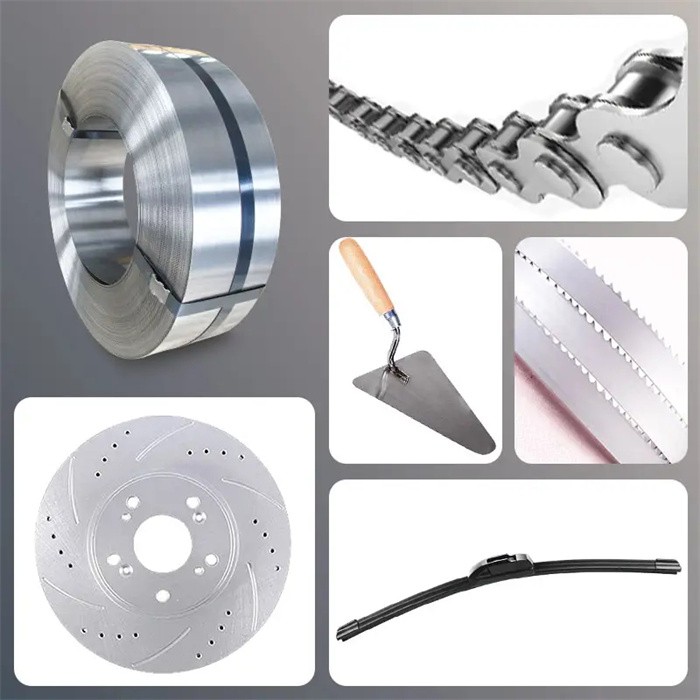

APPLICATION:- Valve Plates, Clutch Plates, Compressor Parts, Diaphragm Springs, Special types of Springs, etc.

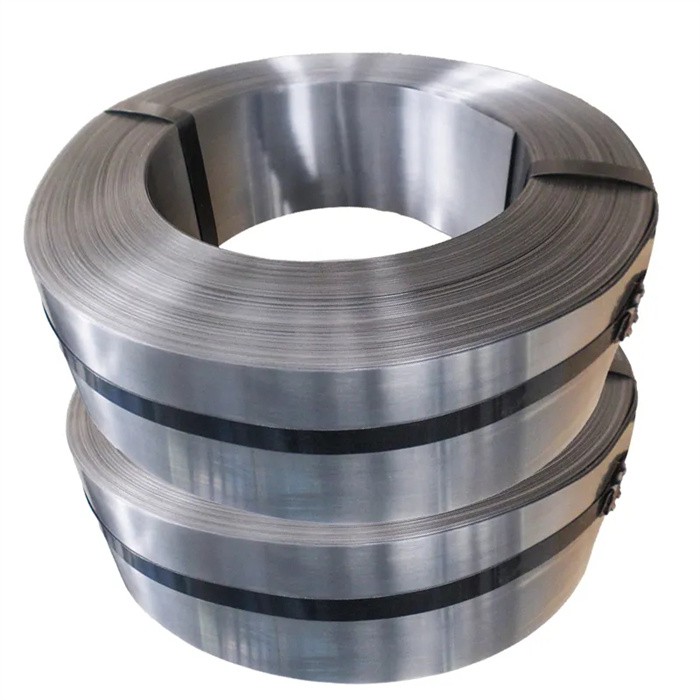

50CrV4 Spring Steel Bar
