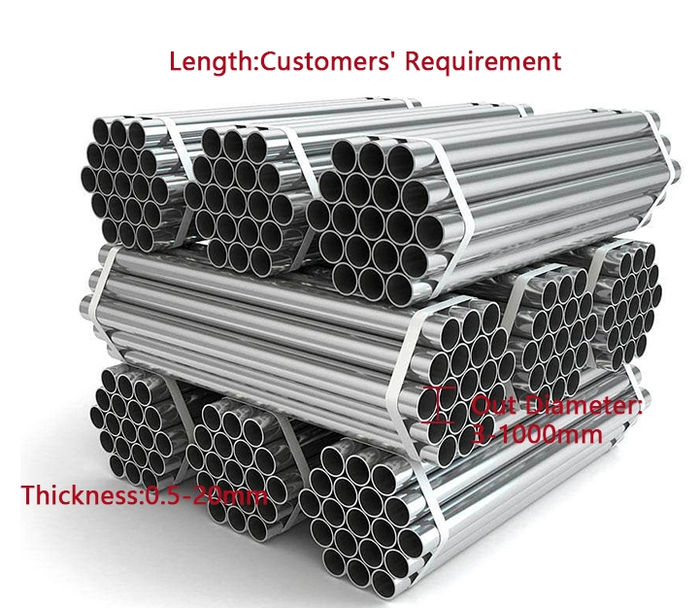

Stainless Steel 304 Pipe Stainless steel, as an alloy steel, has many excellent characteristics, such as smooth surface, high plasticity, excellent toughness and mechanical strength, and resistance to corrosion in acidic, alkaline gases, solutions and other media.

Send Inquiry

Product Introduction

304 SCH 10/40

Stainless steel pipe can be divided into seamless pipe and welded pipe according to production mode.Seamless steel pipe can also be divided into hot-rolled pipe, cold-rolled pipe, cold-drawn pipe and extruded pipe. Cold drawing and cold rolling are secondary processing of steel pipe; Welded pipe is divided into straight welded pipe and spiral welded pipe.

We export to Canada,Brazil,Chile,Colombia,Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. Our export experience is rich, and we are familiar with different market demands, which can help customers avoid many troubles.

Product Advantage
HEALTH：The inner wall of the pipe is smooth,not easy to scale,and avoids the growth of bacteria.
ANTICORROSION：304 food grade stainless steel material,not easy to rust and corrode,noharmful substances are precipitated after long-term use.
SOLIDITY：Metal marerial,strong earthquake resistance and not easy to derorm,lowprobability of water leakage from burst pipes.
DURABLENESS：Surface polishing and anti-oxidation treatment,long servicelife and low maintenance cost.

Name	Stainless steel 304 pipe price list
Standard	ASTM A554,ASTM A312
Material Grade	201,202,304,316,316L,430
Main Material	a) 201 (Ni0.8%-1%) b) 202 (Ni: 3.0%-4.0%) c) 304 (Ni: 8% Cr: 18%) d) 316 (Ni: 10% Cr: 18%)
Size Range	139mm-1600mm ETC.
Thickness	0.5-30mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/- 0.2mm
	b) Thickness: +/- 0.02mm
	c) Length: +/- 5mm
Surface	180G, 320G Satin/Hairline 400G, 600G Mirror finish
Application	handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Chemical Composition of Material	Material Composition	201	202	304	316L	430
	C	≤0.15	≤0.15	≤0.08	≤0.035	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	13-15	14-17	18-20	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<105	<100	<90	<90
