304L 304 Stainless steel pipe
Stainless steel welded pipe: decorative pipe industrial welded pipe heat exchanger pipe, product pipe, sanitary pipe, square pipe, decorative pipe.
Stainless steel seamless tube: stainless steel hexagonal tube octagonal tube thick wall tube seamless square rectangular tube

Send Inquiry

Product Introduction

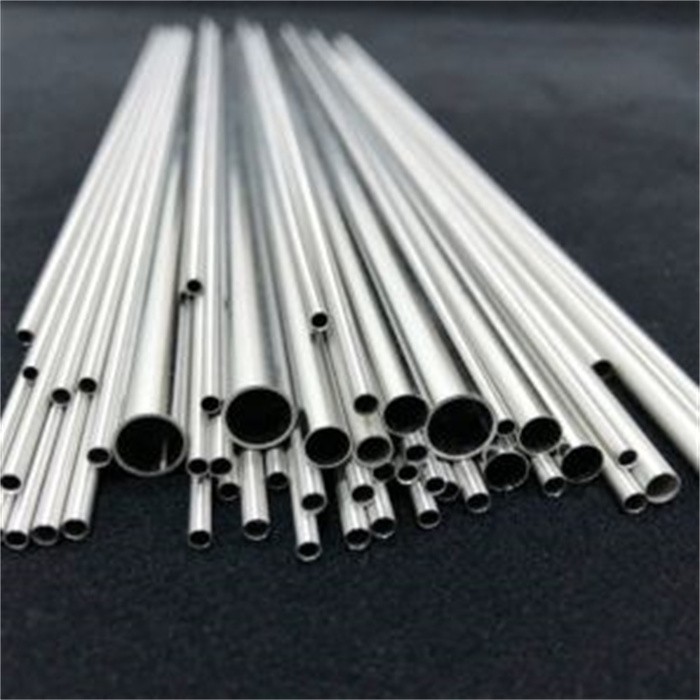

Stainless Steel 304 Pipe

Stainless steel, as an alloy steel, has many excellent characteristics, such as smooth surface, high plasticity, excellent toughness and mechanical strength, and resistance to corrosion in acidic, alkaline gases, solutions and other media.
Widely used in fields such as petroleum, food, chemical, construction, electricity, nuclear energy, energy, machinery, biotechnology, papermaking, shipbuilding, boilers, pipelines, etc., it can also be made according to customer requirements.
The surface of stainless steel pipes is diverse, and different surface states are suitable for different situations and occasions. We can always help customers choose the model that best suits you.

Stainless steel pipe
Nominal Diameter	I Series		II Series		EN Series		Covering layer PE thickness	Insulation thickness
Nominal Diameter	Outer Diameter	Wall Thickness	Outer Diameter	Wall Thickness	Outer Diameter	Wall Thickness	Covering layer PE thickness	Insulation thickness
10	12.7	0.6	-	-	15	0.8	≥0.8	≥2.2
15	16	0.8	16(15.9)	0.8	18	1.0	≥0.8	≥2.2
20	20	1.0	22.2	1.0	22	1.2	≥0.8	≥3.0
25	25.4	1.0	28.6	1.0	28	1.2	≥0.8	≥3.0
32	32	1.2	34	1.2	35	1.5	≥1.0	≥3.0
40	40	1.2	42.7	1.2	42	1.5	≥1.0	≥3.0
50	50.8	1.2	48.6	1.2	54	1.5	≥1.0	≥3.5
60	63.5	1.5	60.3	1.5	-	-	≥1.0	-
65	76.1	2.0	-	-	-	-	≥1.2	-
80	88.9	2.0	-	-	-	-	≥1.2	-
100	101.6	2.0	108	2.0	108	2.0	≥1.2	-
125	133	2.5	-	-	-	-	-	-
150	159	2.5	-	-	-	-	-	-
200	219	3.0	-	-	-	-	-	-
250	273	4.0	-	-	-	-	-	-
300	325	4.0	-	-	-	-	-	-
