Stainless Steel Pipe Type 316L

Stainless Steel Pipe Type 316L

ER308 welding wire is welding SUS304, can not weld 316L stainless steel pipe. 316L stainless steel can be welded with A022 electrode.

316L stainless steel is often used in pulp and paper equipment heat exchangers, dyeing equipment, film washing equipment, pipelines, coastal area building external materials, as well as high-end watch chains, watch cases, etc. Seawater equipment, chemicals, dyes, papermaking, oxalic acid, fertilizer and other production equipment; Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.

316 – 316L SS Welded Pipes composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	min.	–	–	–	–	–	16.0	2.0	10.0	–
	max.	0.08	2.0	0.75	0.045	0.03	18.0	3.0	14.0	0.10

Stainless Steel 316 Round Pipes mechanical properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
316	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Equivalent Grades for SS 316 Hexagonal Pipes

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
316	S31600	304S11	58E	1.4401	X5CrNiMo17-12-2	2347	SUS 316

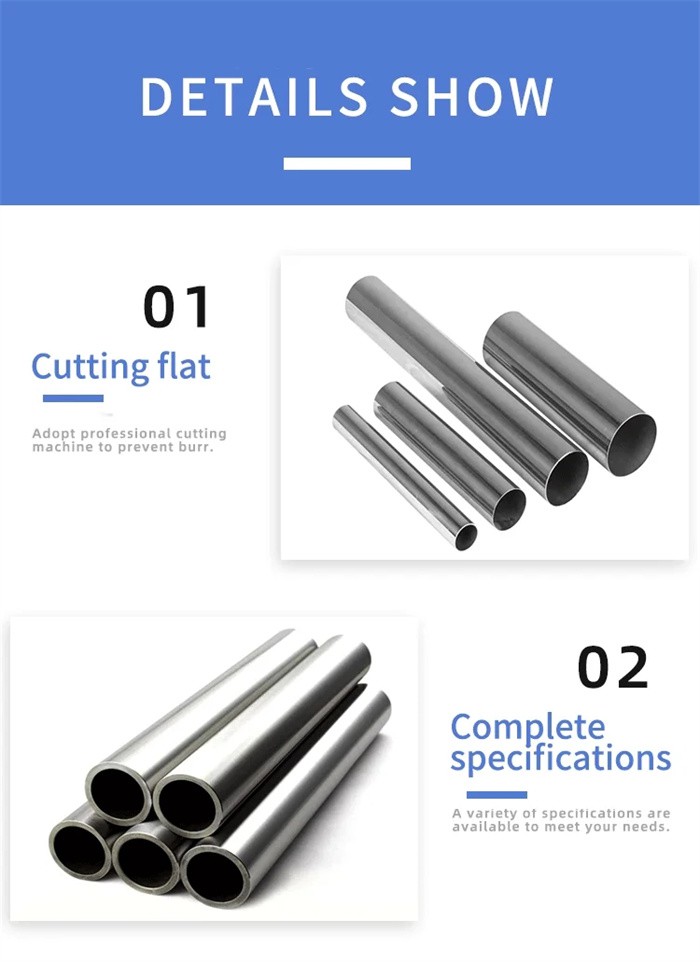

DETAILS SHOW

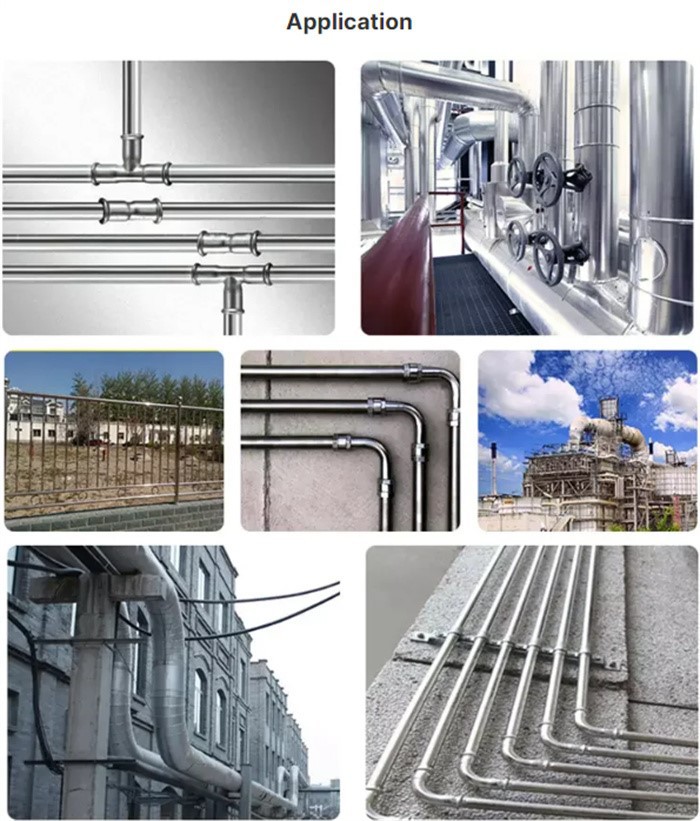

Application

Packing & Delivery

SURFACE

Product Testing
