High Wear Resistant Steel Plate NM360
Super wear-resistant steel plate grades are: WNM450A, WNM450B, WNM450C, WNM500A, WNM500B, WNM500C.
High toughness wear-resistant steel plate: WNM360D, WNM360E, WNM400D, WNM400E.
Weldability high wear-resistant steel plate: WNM360L.
High wear resistant steel plate NM360
Wear-resistant steel plates are mainly divided into three categories: general purpose, impact resistance and high temperature resistance. The total thickness of the wear-resistant steel plate can reach a minimum of 5.5 (2.5+3) mm and the maximum thickness can reach 30 (15+15) mm; Wear-resistant steel can be rolled into the smallest diameter DN200 wear-resistant pipe, and can be processed into wear-resistant elbow, wear-resistant tee, wear-resistant reducer.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | B |
| NM360 | ≤ 0.25 | ≤ 0.70 | ≤ 1.30 | ≤ 0.025 | ≤ 0.01 | ≤ 1.40 | ≤ 0.50 | ≤ 1.00 | ≤ 0.004 |
| NM400 | ≤ 0.25 | ≤ 0.70 | ≤ 1.60 | ≤ 0.025 | ≤ 0.01 | ≤ 1.40 | ≤ 0.50 | ≤ 1.00 | ≤ 0.004 |
| NM450 | ≤ 0.26 | ≤ 0.70 | ≤ 1.60 | ≤ 0.025 | ≤ 0.01 | ≤ 1.50 | ≤ 0.50 | ≤ 0.08 | ≤ 0.004 |
| NM500 | ≤ 0.38 | ≤ 0.70 | ≤ 1.70 | ≤ 0.02 | ≤ 0.01 | ≤ 1.20 | ≤ 0.65 | ≤ 1.00 | 0.005-0.006 |
Physical Performance:
| GRADE | Physical Performance | ||||||
| Thickness (mm) |
Y.P (MPa) |
T.S (MPa) |
E.L A5 (%) |
HB | Strength | ||
| °C | J/cm2 | ||||||
| NM400 | 3-40 | ≥1000 | ≥1250 | ≥10 | 360~430 | -20 | ≥30 |
| NM450 | 12-40 | ≥1250 | ≥1500 | ≥10 | 430~480 | -20 | ≥30 |
| NM500 | 40-80 | ≥1300 | ≥1700 | ≥10 | 480~520 | -20 | ≥30 |

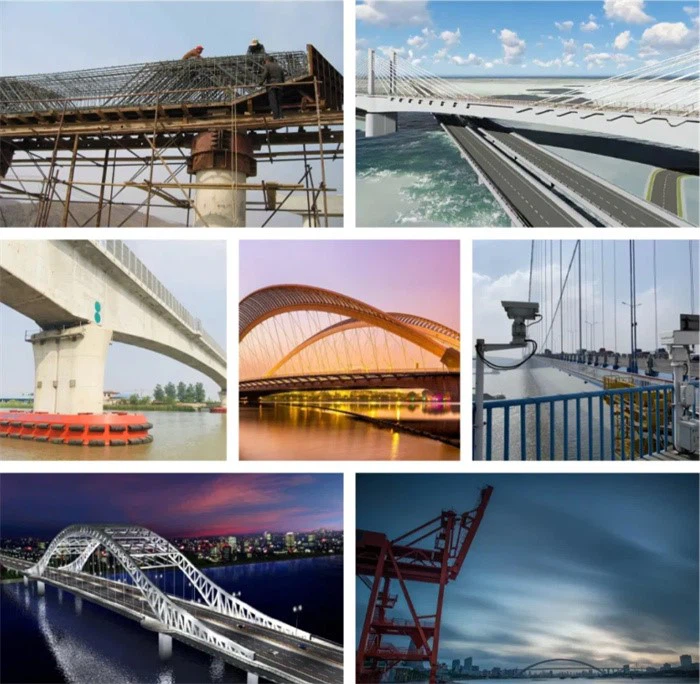

Application
