Manganese Mn13 Steel Plate
Mn13 is a high manganese wear-resistant steel, which has strong work-hardening characteristics. In the process of use, the shallow surface is prone to twin fission, phase displacement and other changes, resulting in a sharp increase in surface hardness and strength, forming a gradient wear-resistant material with wear-resistant surface and high internal toughness. The practical application results show that the steel has obvious work hardening phenomenon in the deformed layer, and the surface hardness is greatly increased. The high hardness hardened layer resists impact abrasive wear. Under the condition of strong impact abrasive wear, high manganese steel has excellent anti-wear properties, and the more impact the more wear resistance. When the steel has low impact load, the surface hardness can reach HB300-400, and when the impact load is high, the surface hardness can reach HB400-500.
Standard-GB, ASTM, JIS, DIN
-American standard- ASTM A128
-Europe standard- X120Mn12
-JIS Standard- SCMnH11
-China National Standard- GB Mn13
- DIN Standard- 1.3401
-AS Standard-K700
chemical component
| mark |
C |
Si |
Mn |
P |
S |
|
Mn13 |
0.90%-1.20% |
0.30%-0.80% |
11.00%-14.00% |
≤0.035% |
≤0.030% |
mechanical property
| mark | strength of extension | ductility | Impact performance 20℃ | Initial Hardness Value (HB) | Post-hardening hardness value (HB) | Cold bending 180° |
|
Mn13 |
≥800MPa |
≥40% |
ak≥90（J） |
200-250 |
>300 |
qualified |
Application field

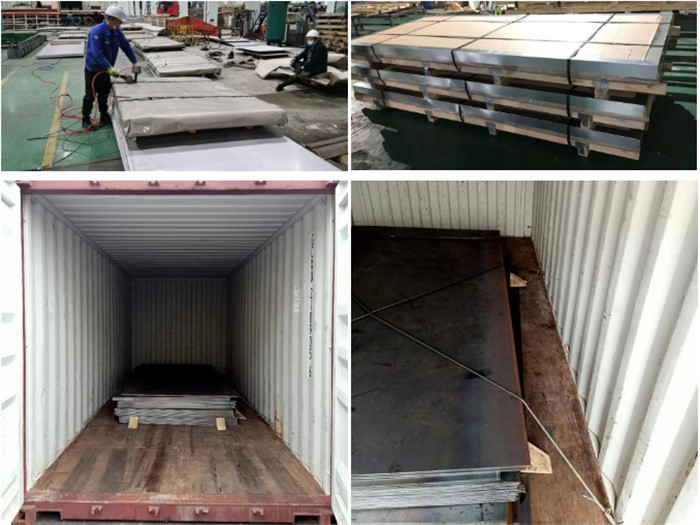

Product packaging
