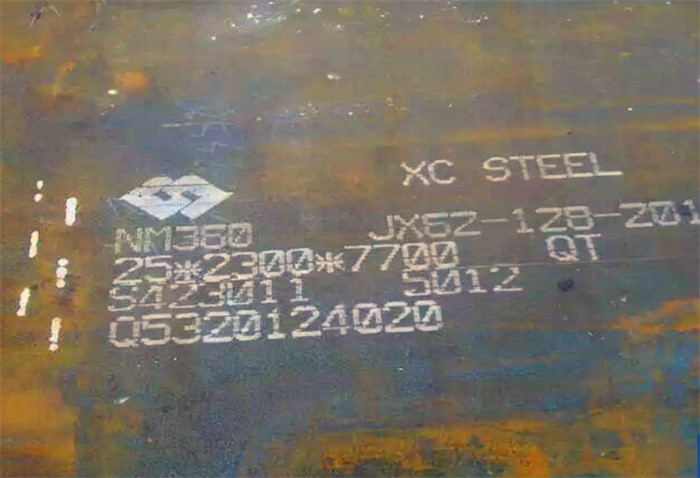

NM360 High Strength Wear Resistant Steel Plate
3mmx 1500mmx8000mm
4mmx2000mmx6000mm/8000mm
5mmx2000mmx6000mm/8000mm
6mmx2000mmx6000mm/8000mm
8mmx2000mmx6000mm/8000mm
10mmx2000mmx6000mm/8000mm
12mmx2000mmx6000mm/8000mm
14mmx2000mmx6000mm/8000mm
16mmx2000mmx6000mm/8000mm
18mmx2000mmx6000mm/8000mm
20mmx2000mmx6000mm/8000mm
25mmx2000mmx6000mm/8000mm
NM360 High strength wear resistant steel plate
Wear-resistant steel plate has high wear resistance and good impact performance, can be cut, bending, welding, etc., can be welded, plug welding, bolt connection and other ways to connect with other structures.
Widely used in mining machinery, coal mining, construction machinery, agricultural machinery, building materials, electric machinery, railway transportation and so on.
Product Parameter
Name: wear-resistant steel plate
Specification :3MM~120MM thickness
Features: high wear resistance, high strength, high impact, etc
Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Mo | Cu | Ni | B |
| XAR400 | 0.20 | 0.80 | 1.50 | 0.025 | 0.010 | 1.00 | 0.50 | -- | -- | 0.005 |
| XAR450 | 0.22 | 0.80 | 1.50 | 0.025 | 0.012 | 1.30 | 0.50 | 0.30 | -- | 0.005 |
| XAR500 | 0.28 | 0.80 | 1.50 | 0.025 | 0.010 | 1.00 | 0.50 | -- | -- | 0.005 |
|
XAR600 |
0.40 | 0.80 | 1.50 | 0.025 | 0.010 | 1.50 | 0.50 | -- | 1.50 | 0.005 |
Mechanical Properties:
| Grade | Y.S(MPa) | T.S(MPa) | Elongation | Brinell Hardness |
| XAR400 | 1150 | 1300 | ≥12 | 360-440 |
| XAR450 | 1200 | 1350 | ≥10 | 410-490 |
| XAR500 | 1500 | 1600 | ≥9 | 450-530 |
| XAR600 | -- | -- | -- | ≥550 |
Application
Manufacturing Technique
