AISI 1045 Steel Round Bar Sheet Plate
AISI 1045 steel is a medium carbon steel that has excellent tensile strength and hardness. It is commonly used in applications where stress and strain are present, such as gears, axles, crankshafts, and machinery parts.
Round Bar: AISI 1045 steel round bars have a diameter of up to 500mm and are commonly used for shafts, bolts, and grinders. They come in hot rolled, cold drawn, and forged conditions.
Sheet: AISI 1045 steel sheets are available in different thicknesses and dimensions. They are commonly used for automotive parts, construction equipment, and machinery components.
Plate: AISI 1045 steel plates are typically available in thicknesses ranging from 6mm to 300mm. They are commonly used for mold base, machinery parts, and construction applications.
AISI 1045 steel can be further enhanced by heat treatment methods such as annealing, quenching, and tempering. Its machinability is good with reasonable welding properties. It is also popular in the fabrication industry due to its ease of manipulation and excellent ductility.
Below are the product specifications of AISI 1045 steel round rods, plates and plates:
1. Diameter range of round rod: 10mm to 1000mm;
2. Steel plate thickness range: 1.5mm to 200mm;
3. Steel plate width range: 1000mm to 3000mm;
4. Steel plate length range: 2000mm to 12000mm.

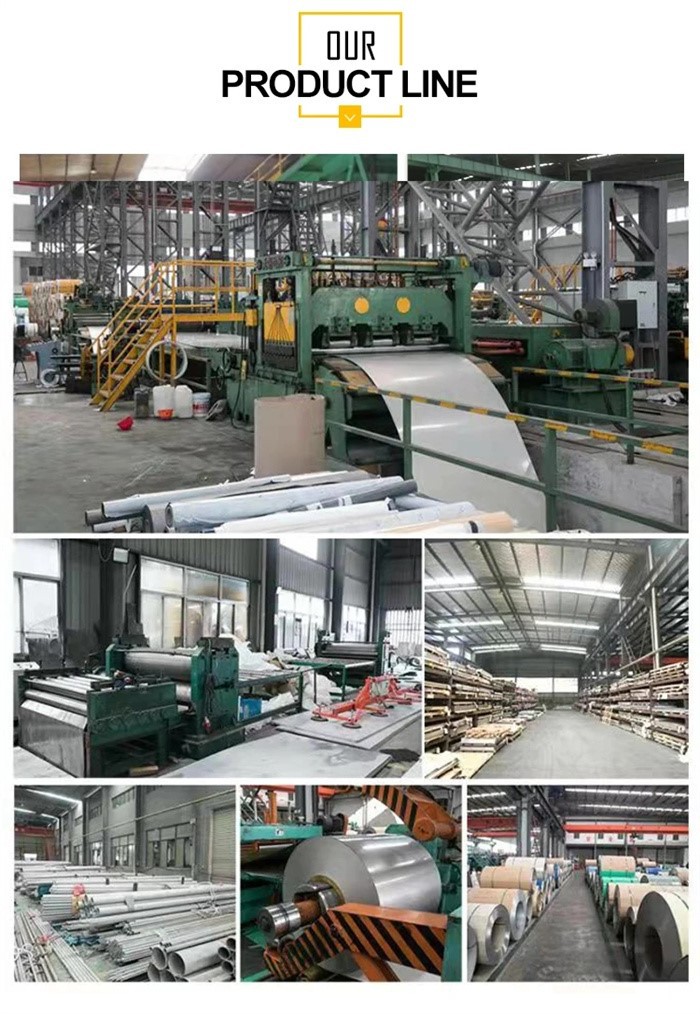

OUR PRODUCT LINE
1045 Steel Grade Equivalent Chart
| Country | USA | Germany/UK/France | JAPAN | ISO |
|---|---|---|---|---|
| Standard | ASTM A29/A29M-05 | EN 10083/2-2006 | JIS G4051-2009 | ISO 683/18-1996 |
| Grades | 1045 | C45(1.0503) | S45C | C45E4 |
1045 Steel Chemical Composition
| STAND | C(%) | Mn(%) | P(%) | S(%) | Si(%) | Cr(%) | Mo(%) | Ni(%) |
|---|---|---|---|---|---|---|---|---|
| ASTM A29/A29M-05 | 0.43-0.50 | 0.60-0.90 | Max 0.040 | Max 0.050 | Max 0.10 | - | - | - |
| EN 10083/2-2006 | 0.42-0.50 | 0.50-0.80 | Max 0.045 | Max 0.045 | Max 0.40 | Max 0.40 | Max 0.10 | Max 0.40 |
| JIS G4051-2009 | 0.42-0.48 | 0.60-0.90 | Max 0.030 | Max 0.035 | 0.15-0.35 | - | - | ≤0.20 |
| ISO 683/18-1996 | 0.42-0.50 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.10-0.40 | - | - | - |
1045 Steel Physical Properties
| Physical Properties | Metric | Imperial |
|---|---|---|
| Density | 7.87 g/cc | 0.284 lb/in³ |
C45 Steel Mechanical Properties
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Hardness, Brinell | 163 | 163 |
| Hardness, Knoop (Converted from Brinell hardness) | 184 | 184 |
| Hardness, Rockwell B (Converted from Brinell hardness) | 84 | 84 |
| Hardness, Vickers (Converted from Brinell hardness) | 170 | 170 |
| Tensile Strength, Ultimate | 565 MPa | 81900 psi |
| Tensile Strength, Yield | 310 MPa | 45000 psi |
| Elongation at Break (in 50 mm) | 16.0 % | 16.0 % |
| Reduction of Area | 40.0 % | 40.0 % |
| Modulus of Elasticity (Typical for steel) | 200 GPa | 29000 ksi |
| Bulk Modulus (Typical for steel) | 140 GPa | 20300 ksi |
| Poissons Ratio (Typical For Steel) | 0.290 | 0.290 |
| Shear Modulus (Typical for steel) | 80 GPa | 11600 ksi |
