Versatile Durable Steel Sae 1055

Versatile Durable Steel Sae 1055 is specifically designed to provide high levels of toughness and strength, making it ideal for manufacturing machine parts, tools, and other components that require high levels of durability. It can also be used in various types of construction applications, including structural steel, bridges, and buildings.

This steel is known for its excellent resistance to corrosion and abrasion, which makes it ideal for outdoor applications as well. It is also a popular choice for manufacturing automotive parts, such as bearings and crankshafts, due to its exceptional strength and wear resistance.

Overall, SAE 1055 is an extremely versatile and durable steel that can be used in a wide variety of applications. Its high strength, durability, and resistance to wear and tear make it an excellent choice for manufacturing high-quality, long-lasting products and components.

Here are some of its key specs:

• Durability: can withstand a range of stresses and strains without losing its structural integrity. This makes it a popular choice for applications that require high strength and elasticity.
• Versatility: It can be used in a wide range of applications from construction and manufacturing to automotive and aerospace engineering. Its flexibility also makes it easy to use and shape into a variety of forms and structures.
• Corrosion resistance: Ideal for applications exposed to harsh or corrosive environments. This property helps to extend the service life of structures and equipment made of this alloy.
• Machinability: Ease of processing and machining, which makes it an attractive option for manufacturers and manufacturers. It can be easily cut, formed and welded, enabling efficient production and construction processes.

Data Table for:Carbon steel:SAE 1055

Steel grade type	Carbon steel:
Standard	SAE

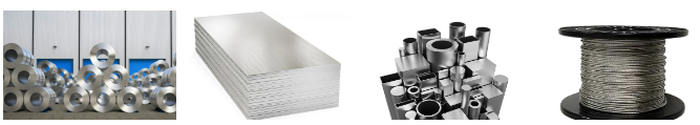

Production specifications	Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings.
Mchining	Turning Milling Grinding Deep hole drilling: length max 9.8 meters.
Range of work	Round bar steel: 1mm to 2000mm Square-shape steel: 10mm to 1000mm steel Plate/sheet:0.08mm to 800mm Width: 10mm to 1500mm Lenth: We can supply any lenth based on the customer's requirement. Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm.
Heat treatment	Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing

Chemical Composition

Element	Content (%)
Iron, Fe	98.41-98.9
Manganese, Mn	0.60-0.90
Carbon, C	0.50-0.60
Sulfur, S	≤ 0.050
Phosphorous, P	≤ 0.040

Physical Properties

Properties	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in3

Mechanical Properties

Properties	Metric	Imperial
Tensile strength, ultimate	660 MPa	95700 psi
Tensile strength, yield	560 MPa	81200 psi
Modulus of elasticity	190-210 GPa	29700-30458 ksi
Bulk modulus (typical for steel)	140 GPa	20300 ksi
Shear modulus (typical for steel)	80 GPa	11600 ksi
Poissons ratio	0.27-0.30	0.27-0.30
Elongation at break (in 50 mm)	10%	10%
Reduction of area	40%	40%
Hardness, Brinell	197	197
Hardness, Knoop (converted from Brinell hardness)	219	219
Hardness, Rockwell B (converted from Brinell hardness)	92	92
Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only)	13	13
Hardness, Vickers (converted from Brinell hardness)	207	207
Machinability (based on AISI 1212 steel. as 100 machinability)	55	55

Thermal Properties

Properties	Metric	Imperial
Thermal expansion co-efficient	11 µm/m°C	6.11 µin/in°F
Thermal conductivity	49.8 W/mK	346 BTU in/hr.ft2.°F

Support all models of processing custom
