Material: 316 stainless steel
Surface treatment: 2B
Relative density: 7.98
Tensile strength: ≥520MPa
Yield strength: ≥205MPa
Elongation: ≥40%
Hardness: ≤187HBW

Send Inquiry

Product Introduction

316 Series stainless steel sheet plate is a type of austenitic stainless steel commonly used in various applications due to its exceptional corrosion resistance, high strength, and excellent formability. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which gives it its superior resistance to corrosive environments such as seawater, acids, and chemicals.

This type of stainless steel sheet plate is highly resistant to pitting and crevice corrosion, making it ideal for use in marine and coastal applications, as well as in harsh chemical processing environments. It is also used in the production of surgical instruments, in the food and beverage industry, and in architectural and structural applications.

316 Series stainless steel sheet plate is available in various sizes, thicknesses, and finishes, including polished, satin, and brushed. It can be cut, bent, and welded to suit specific requirements and is often used in conjunction with other stainless steel grades for optimal performance and durability.

Material: 316 series stainless steel
Thickness: 0.3mm-50mm
Width: 1000mm-2000mm
Length: 2000mm-6000mm, or as required

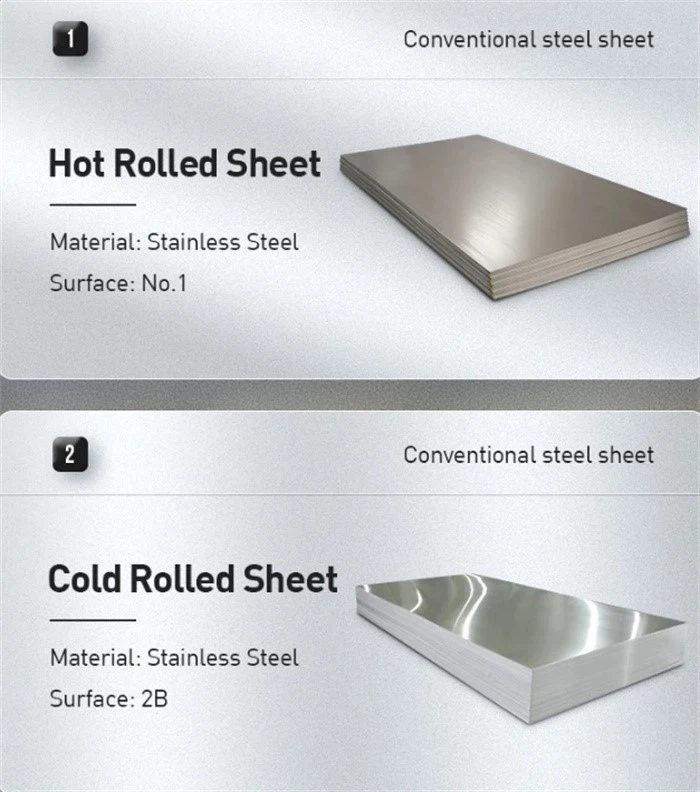

Surface finish: No.1, 2B, BA, No.4, 8K(mirror), HL, etc.
Applications: 316 Series stainless steel sheet plate is widely used in the chemical, petrochemical, food processing, medical equipment, and marine industries.

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00	67.845 min

Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi - 75000 , MPa - 515	Psi - 30000 , MPa - 205	35 %

Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	-	Z7CND17-11-02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
