EN 10025-6 S960QL1 High Strength Steel Steel Sheet
EN 10025-6 S960QL1 high strength steel steel sheet
High strength board in daily life, mechanical all have. High-strength plate, also known as low-alloy high-strength plate, or high-strength welded plate, its main feature is that the strength is very large. The use of high strength board is still relatively wide, mining, engineering construction reverse truck, excavator, etc., the price according to different models, the price is also incompatible.
Model: S960QL
Size: 10*2200*8000
Country of Origin: China
Category: Metallurgical Minerals, Energy/Metallurgical Minerals/Sheet (roll) materials
Tags: S960QL,
Minimum order quantity: 1 ton
CHEMICAL COMPOSITION
| C | Si | Mn | P | S | B | Cr | Cu | Mo |
| 0.20 | 0.80 | 1.70 | 0.020 | 0.010 | 0.005 | 1.50 | 0.50 | 0.70 |
| N | Nb* | Ni | Ti* | V* | Zr* | |||
| 0.015 | 0.06 | 2.0 | 0.05 | 0.12 | 0.15 |
MECHANICAL PROPERTIES
| Plate Thickness | Yield Strength | Tensile Strength | Elongation | Impact Strength |
| mm | ReH (MPa) | Rm (MPa) | A5 % minimum | J, Minimum |
| 3 to 50 | 960 | 980 - 1150 | 10 | 30 @ -40º C |
| > 50 to 100 | 910 | 920 - 1000 | 10 | 30 @ -40º C |
| > 100 to 150 | 860 | 870 - 980 | 10 | 30 @ -40º C |
V NOTCH IMPACT TESTING
| Grade | Sample Orientation | @ 0°C | @-20°C | @-40°C | @-60°C |
| S960 QL | Longitudinal | 50 J | 40 J | 30 J | –– |
| Traverse | 35 J | 30 J | 27 J | –– |

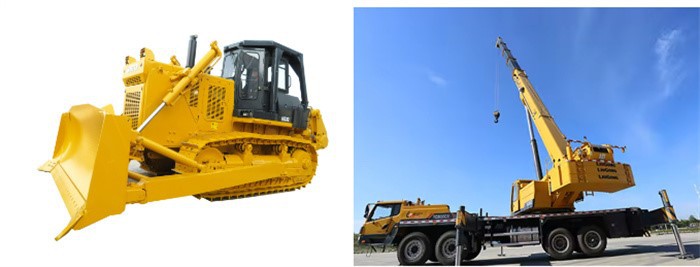

Application

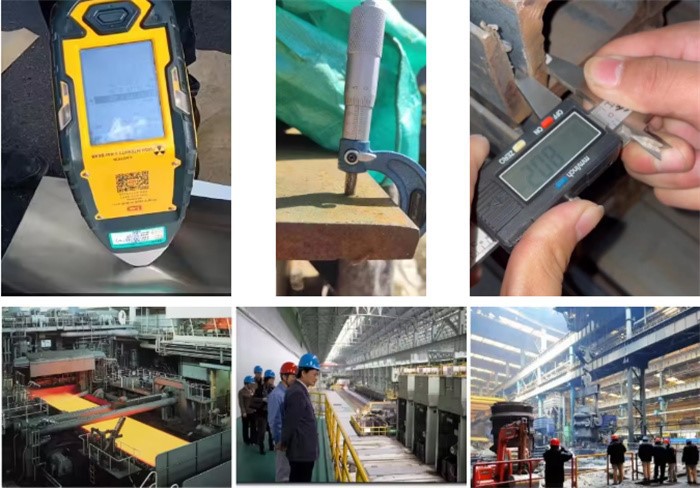

Inspection and Customization

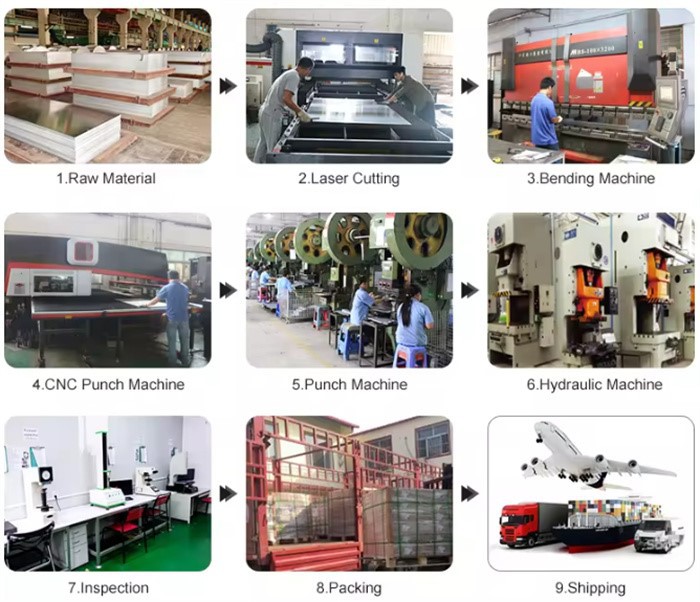

Machining Center
Packaging
Why Choose Us

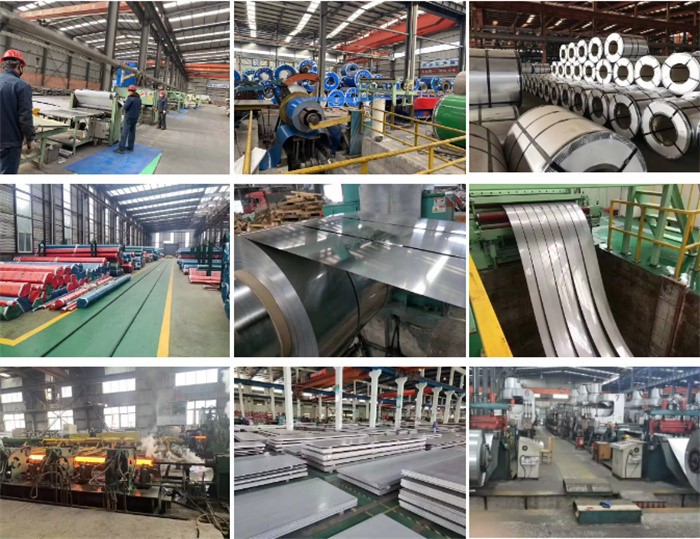

Production Workshop
